KYM Terminator 90° Corner with Hardware

The KYM Terminator 90° Corner with Hardware joins the side upper arm to the top crossbar tube on front-to-back flip arm tarp systems. Positioned at the top corners of the gantry arm framework, this heavy-duty elbow maintains a square 90-degree frame geometry so the tarp extends and retracts evenly across the dump body.

Key Features

• Heavy-Duty Cast Aluminum
• Square Frame Alignment
• Complete Hardware Package
• Slip-Fit Design

Specifications

• Part Number: T-A90C-A
• Material: Cast Aluminum Alloy
• Angle: 90 Degrees
• System Fit: Front-to-back flip arm tarp assemblies (3-spring, 4-spring, and 5-spring setups)

Replacement Compatibility

Direct cross-reference replacement for 90-degree aluminum corner castings across major tarp system brands:

• US Tarp: 11235 / 11136 / 13932
• Buyers Products: 3011866 / 5543000
• Donovan: 1121 / 3617

Compatibility Note

Verify your upper arm and top crossbar inner tube dimensions prior to installation to ensure a precise slip-fit connection.

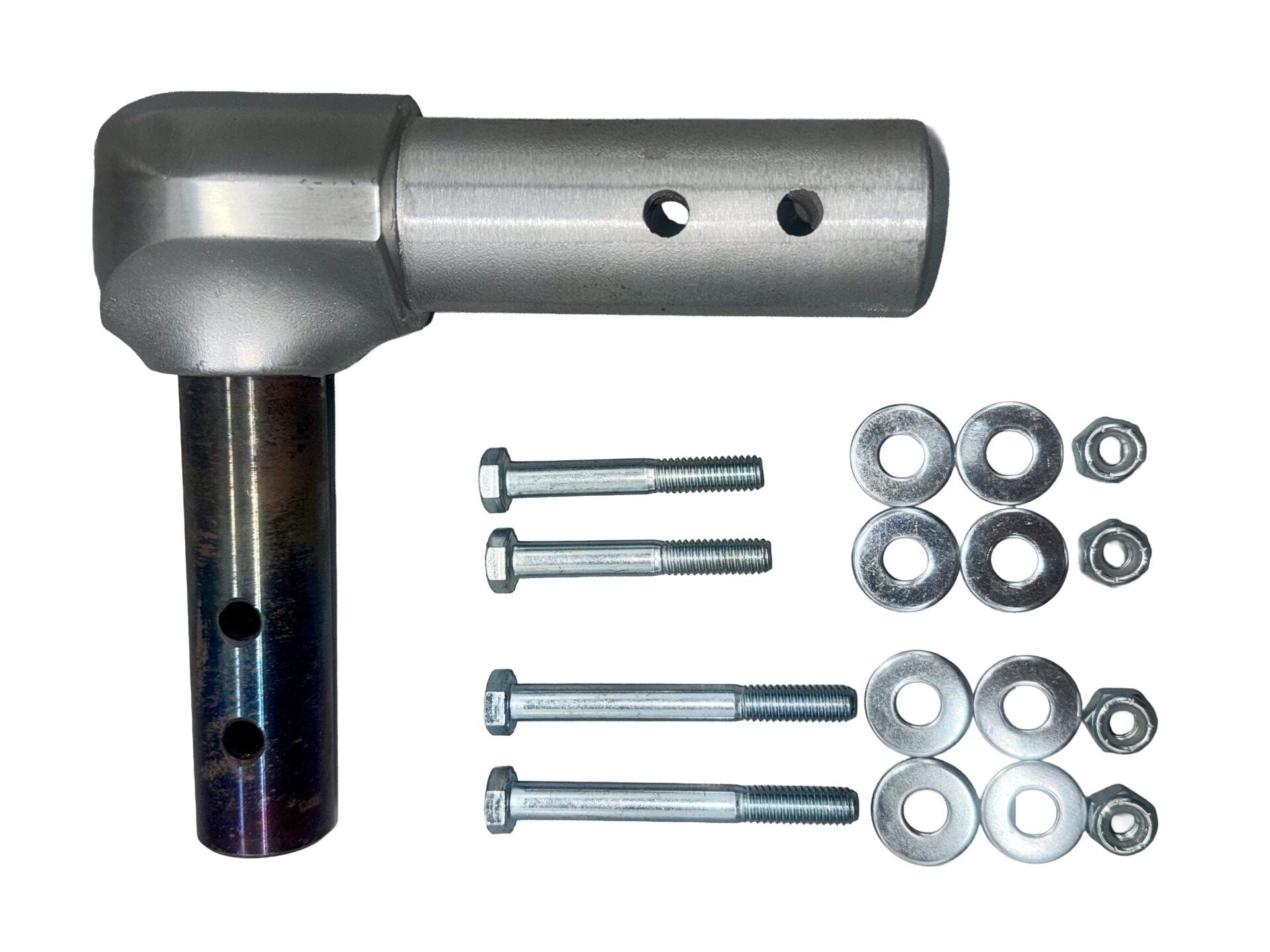

What’s Included

• (1) Terminator Cast Aluminum 90° Corner Elbow
• (2) Mounting Hex Bolts
• Lock Washers & Nuts Set
