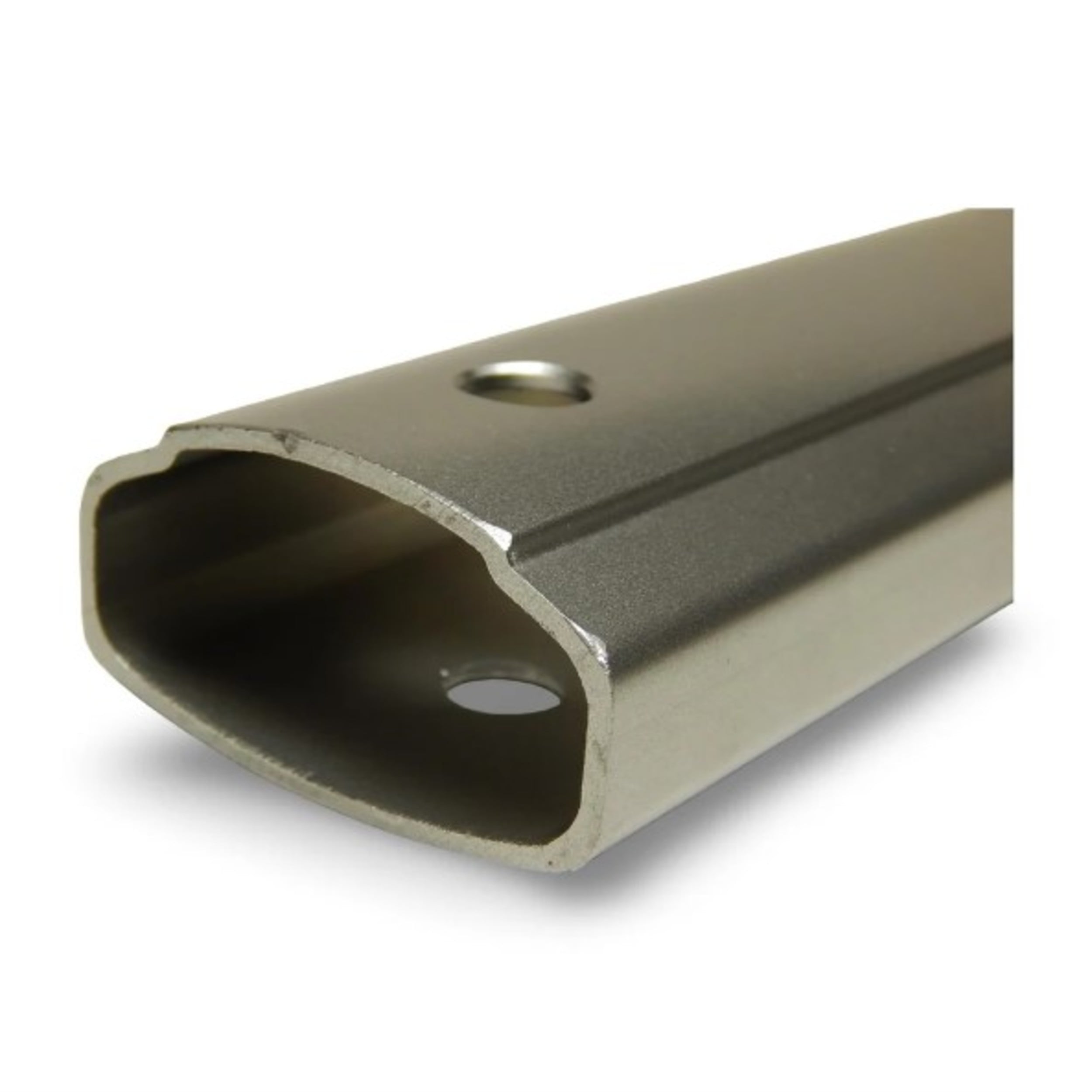

KYM Adjustable Aluminum Cross Tube

The KYM Adjustable Aluminum Cross Tube (T-ACT93/110) is a three-piece telescoping crossbar designed for compatible front-to-back flip-arm tarp systems. It connects the upper side arms and supports the tarp assembly during operation.

Key Features

• Adjustable Telescoping Design: Extends from 90″ to 110″ and can be trimmed for narrower body widths, as appropriate for the installation.
• Set Screw Locking: Uses eight Allen cup-head set screws to secure the telescoping tubes in position.
• Three-Piece Assembly: Separates into sections for easier handling and shipping compared with a one-piece crossbar.
• Corner Casting Compatibility: Designed to connect with compatible 90-degree upper corner castings.

Specifications

• Part Number: T-ACT93/110
• Vendor: KYM Industries / TSI
• Outer Profile Dimensions: 2-1/8″ × 1-3/8″
• Wall Thickness: 5/64″
• Material: Extruded aluminum alloy
• Adjustable Width: 90″–110″

What’s Included

• (1) 47″ center sleeve tube
• (2) 45″ outer telescoping tubes
• (8) 1/2″ × 1/2″ Allen cup-head set screws
