Kym Apache Tarp Motor – 12V, 50:1 Direct Drive

The KYM Apache Tarp Motor is a heavy-duty 12V direct-drive motor designed for electric tarp systems on dump bodies up to 28 feet long. With a 600W motor, 50:1 gear ratio, and 29.5 lb-ft maximum torque, it provides dependable power for opening and closing front-to-back tarp systems.

The Apache features a 3/4″ x 3-3/4″ output shaft with two 5/16″ through-holes and is designed as a replacement for several commonly used tarp motors from Roll-Rite, Donovan, Mountain Tarp, Aero, and US Tarp.

Specifications

• Voltage: 12V
• Power: 600W
• Type: Direct Drive
• Gear Ratio: 50:1
• Maximum Torque: 40 Nm / 29.5 lb-ft
• Current Draw at Rated Torque: 40A
• Speed: 90–100 RPM
• Output Shaft: 3/4″ diameter x 3-3/4″ long
• Shaft Holes: Two 5/16″ through-holes
• Gear Type: Worm-to-Wheel
• Braking: Inherent
• Recommended Wiring: 6 AWG
• Application: Electric tarp systems on dump bodies up to 28 ft
• Warranty: 3 Years

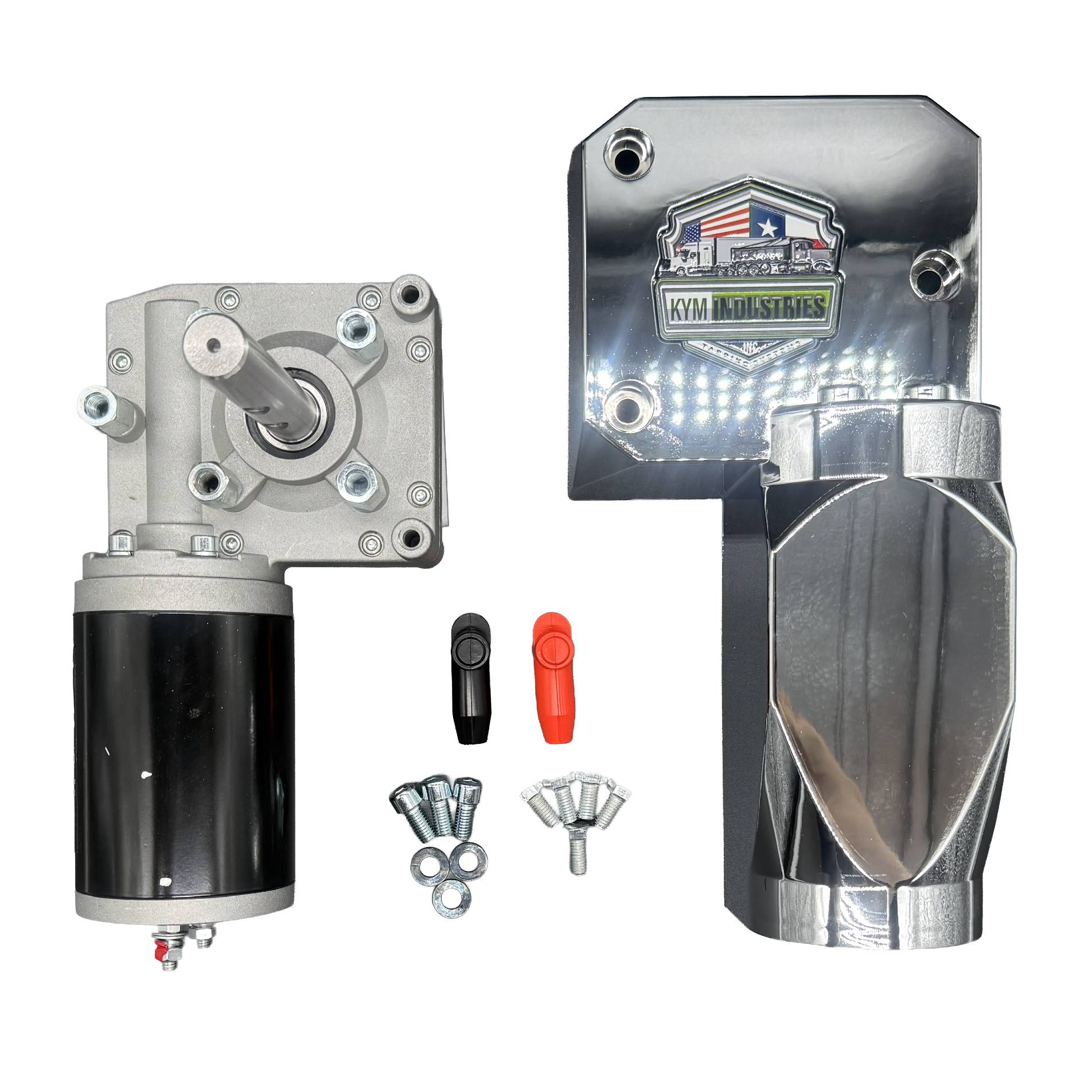

Included

• KYM Apache tarp motor
• Plastic chrome motor cover
• Mounting hardware
• Rubber washers

Replacement Compatibility

The KYM Apache Tarp Motor is a replacement for:

• Roll-Rite 10310
• Donovan 61G
• Donovan 61X
• Mountain Tarp K0170S
• Aero 0755-623457
• US Tarp 13655
