KYM 5-Spring Aluminum Arm Set with Springs & Hardware

The KYM 5-Spring Aluminum Arm Set with Springs & Hardware (T-PAT-5SP93-PTP) is a replacement arm assembly kit designed for compatible front-to-back flip-arm tarp systems on dump bodies and trailers. Its aluminum arm components and five-spring pivot design support tarp deployment and retraction.

Key Features

• Complete System Kit: Includes arm components, pivot pins, springs, cross-tube, and mounting hardware.
• 5-Spring Pivot Design: Features five spiral torsion springs per side for compatible tarp systems.
• Adjustable Cross-Tube: Telescoping tube adjusts to accommodate compatible dump truck body widths.
• Optional Arm Bends: 30° or 45° bends may be available for cab guard and side rail clearance. Confirm the required configuration before ordering.

Specifications

• Part Number: T-PAT-5SP93-PTP
• Vendor: KYM Industries / TSI
• Body Compatibility: Intended for compatible dump bodies and trailers; verify body length and system configuration before ordering.
• Material: Extruded aluminum alloy
• Spring System: 5-spring pivot configuration

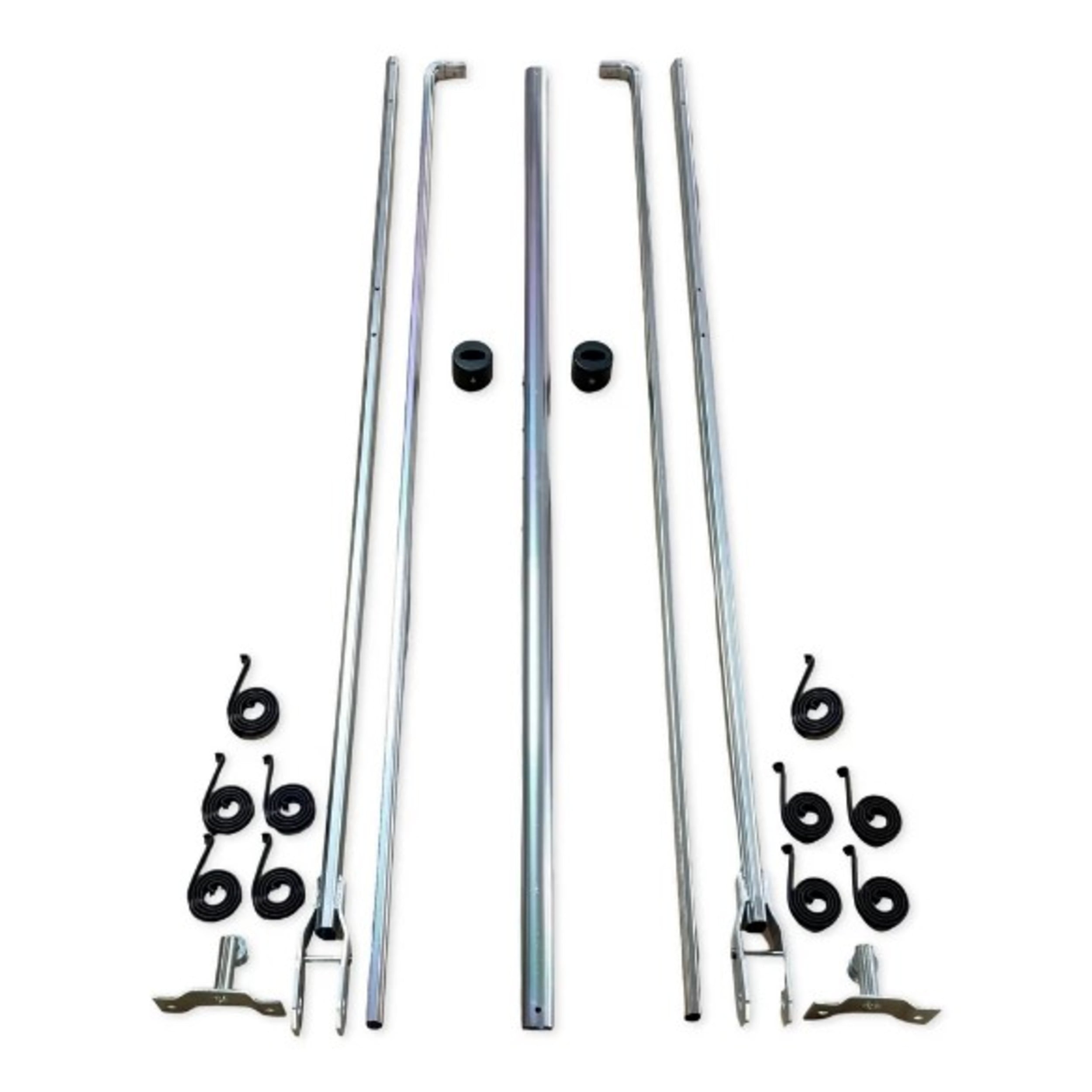

What’s Included

• (2) Aluminum lower arms
• (2) Aluminum upper side arms with welded 90-degree corners
• (1) Adjustable aluminum upper cross-tube
• (2) 5-spring bed-mounted pivot pins
• (10) Alloy spiral torsion springs
• (2) Stainless steel bushings
• (2) External retaining snap rings
• (2) Patriot rubber tarp centering bumpers
• Assembly mounting hardware kit
