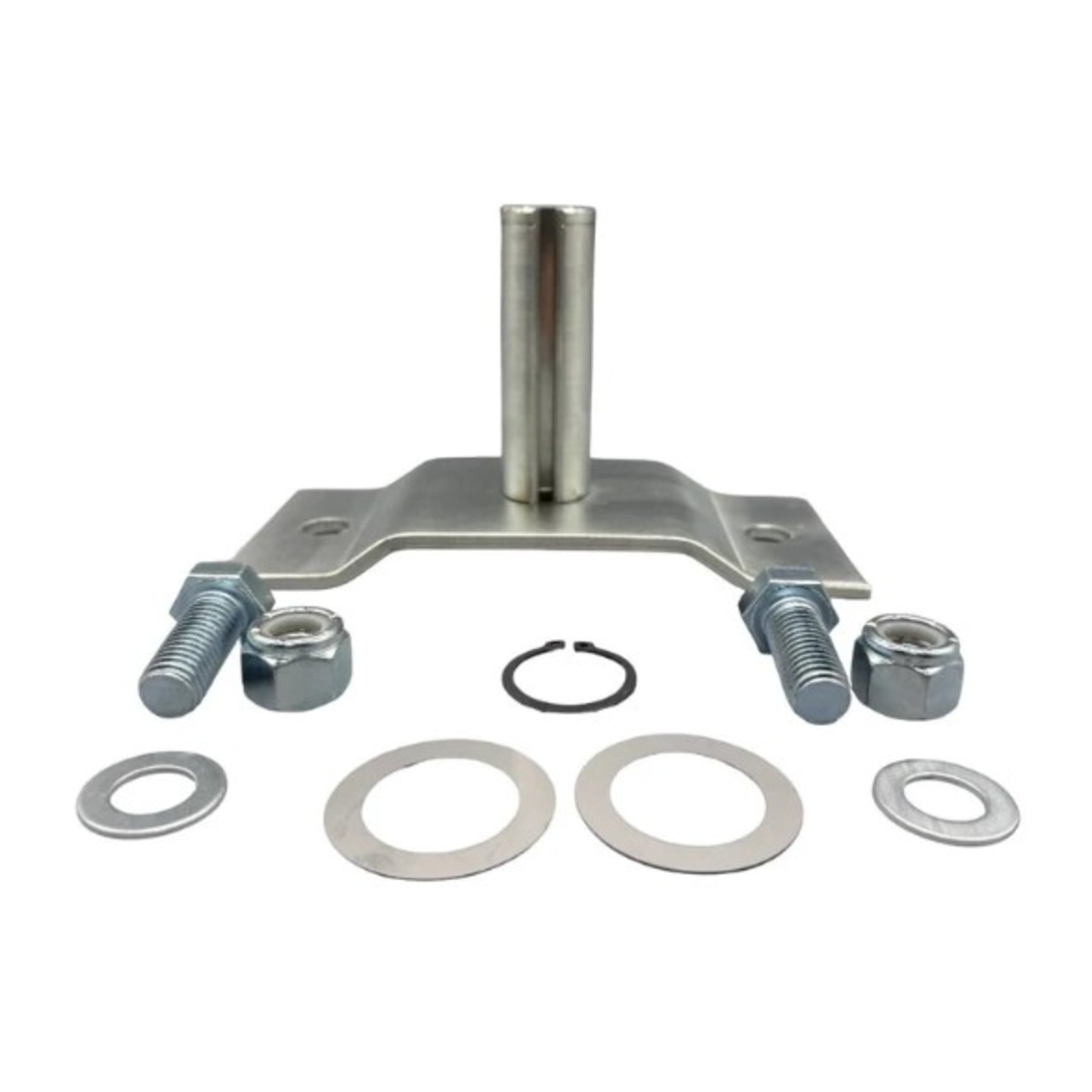

KYM 4-Spring Pivot Pin with Hardware

The KYM 4-Spring Pivot Pin with Hardware (T-PP4SP-A) is a side-mount pivot pin assembly designed for compatible 4-spring external aluminum flip-arm tarp systems on dump bodies and trailers. It provides a mounting point for the lower pivot arm and torsion springs, with a retention groove for a compatible external snap ring.

Key Features

• Heavy-Duty Steel Construction: Provides support for compatible pivot arm and spring assemblies.
• Machined Retention Groove: Accepts a compatible external snap ring to help retain the pivot assembly components.
• Pre-Drilled Mounting Bracket: Features two 5/8″ mounting holes spaced 6.25″ center-to-center.
• Mounting Hardware Included: Includes fasteners for installation of the pivot pin assembly.

Specifications

• Part Number: T-PP4SP-A
• Vendor: KYM Industries / TSI
• Pin Shaft Dimensions: 3.700″ length × 1-3/16″ diameter
• Mounting Hole Spacing: 6.25″ center-to-center, with two 5/8″ holes
• Application: Compatible 4-spring aluminum flip-arm systems for bodies up to 23 feet long
• Material: Steel

What’s Included

• (1) Steel 4-spring pivot pin shaft and mounting bracket assembly
• (1) Body-mounting fastener hardware kit
