Roll Rite Super Duty Electric Tarp System – Dump Trailer Tarp Kit (SD5000 / SD6000 / SD8000)

Heavy-Duty Electric Tarp System for Dump & Scrap Trailers

The Roll-Rite Super Duty Series tarp systems are engineered for reliable, heavy-duty tarp coverage on dump trailers, end dumps, scrap trailers, and gondola trailers. Designed for demanding hauling environments, these systems deliver smooth electric operation, consistent tarp tension, and long-lasting performance.

Each system includes a 98″ integrated aluminum tarp housing, 12V electric motor, spring-assisted under-body pivot arms, and a wide bow support system to ensure proper tarp coverage across large trailers.

Available in SD5000, SD6000, and SD8000 configurations, you can select the correct system based on your trailer and tarp length.

Key Features

• Electric Tarp Operation – 12V system for quick, reliable tarp deployment
• 98″ Integrated Aluminum Housing – Protects tarp and motor while simplifying installation
• Spring-Assisted Under-Body Pivot System – Smooth operation with reduced motor strain
• Wide Bow Support System – Prevents tarp sagging across wide trailer bodies
• Heavy-Duty Construction – Built for dump, scrap, and aggregate hauling applications

Choose the Right Super Duty System

Trailer / Tarp Length	Recommended System	Part Number
Up to 26 ft tarp	SD5000	65000
Up to 34 ft tarp	SD6000	66000
Up to 44 ft tarp	SD8000	68000

Simple Rule:

• Smaller trailers → SD5000 (5 springs)
• Medium trailers → SD6000 (6 springs)
• Large trailers → SD8000 (8 springs)

Pro Tip: If your tarp length is close to the limit, choose the next size up for better performance and longer system life.

Model Comparison

Model	Part Number	Max Tarp Length	Springs	Pivot Tube Length	Best For
SD5000	65000	Up to 26 ft	5 Spring	96″	Medium dump trailers
SD6000	66000	Up to 34 ft	6 Spring	144″	Long dump / end dump trailers
SD8000	68000	Up to 44 ft	8 Spring	192″	Large trailers / heavy-duty use

Key System Components (OEM Design)

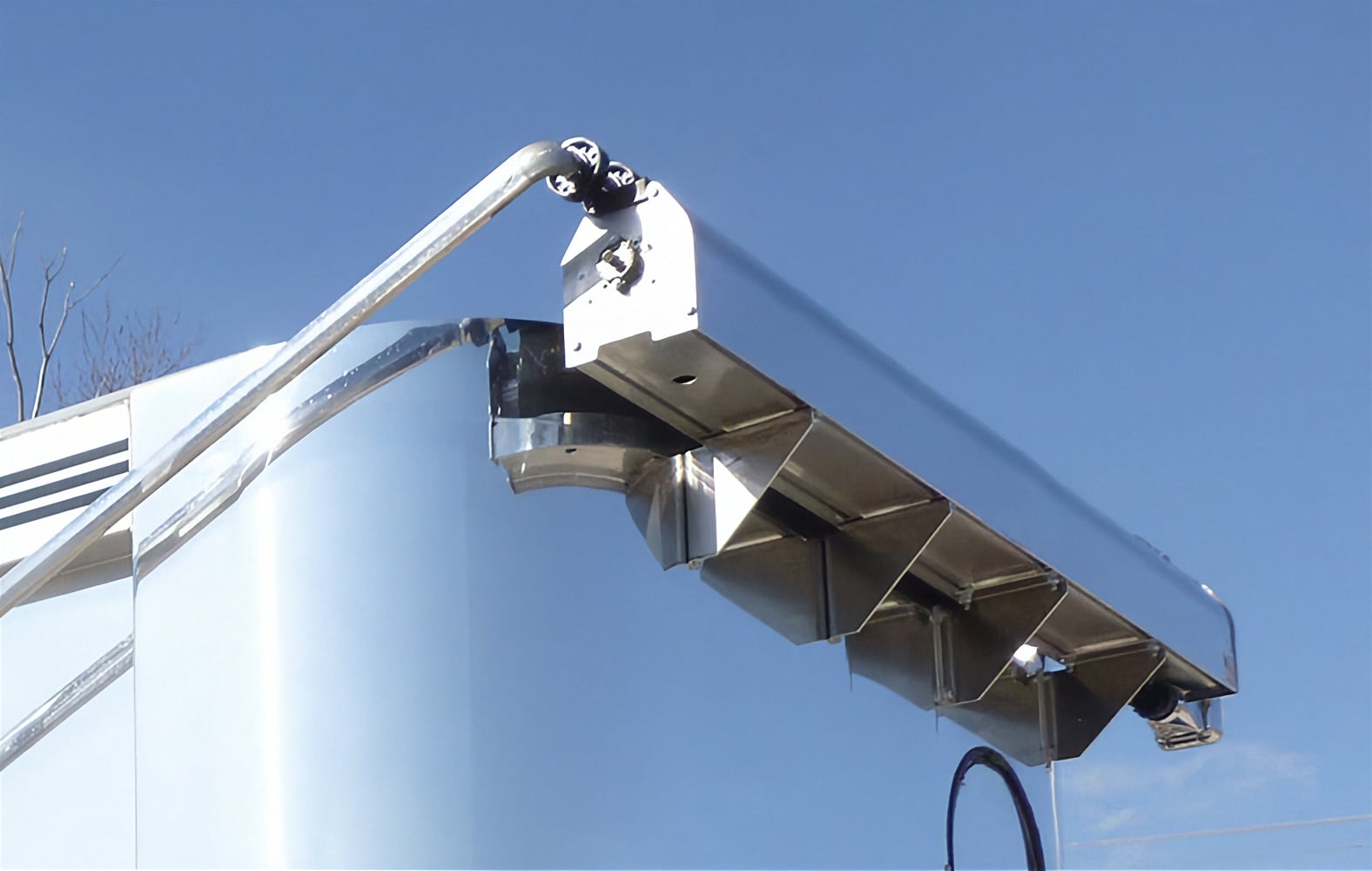

• 98″ Integrated Tarp Spool & Housing
• Heavy-Duty 12V Electric Motor

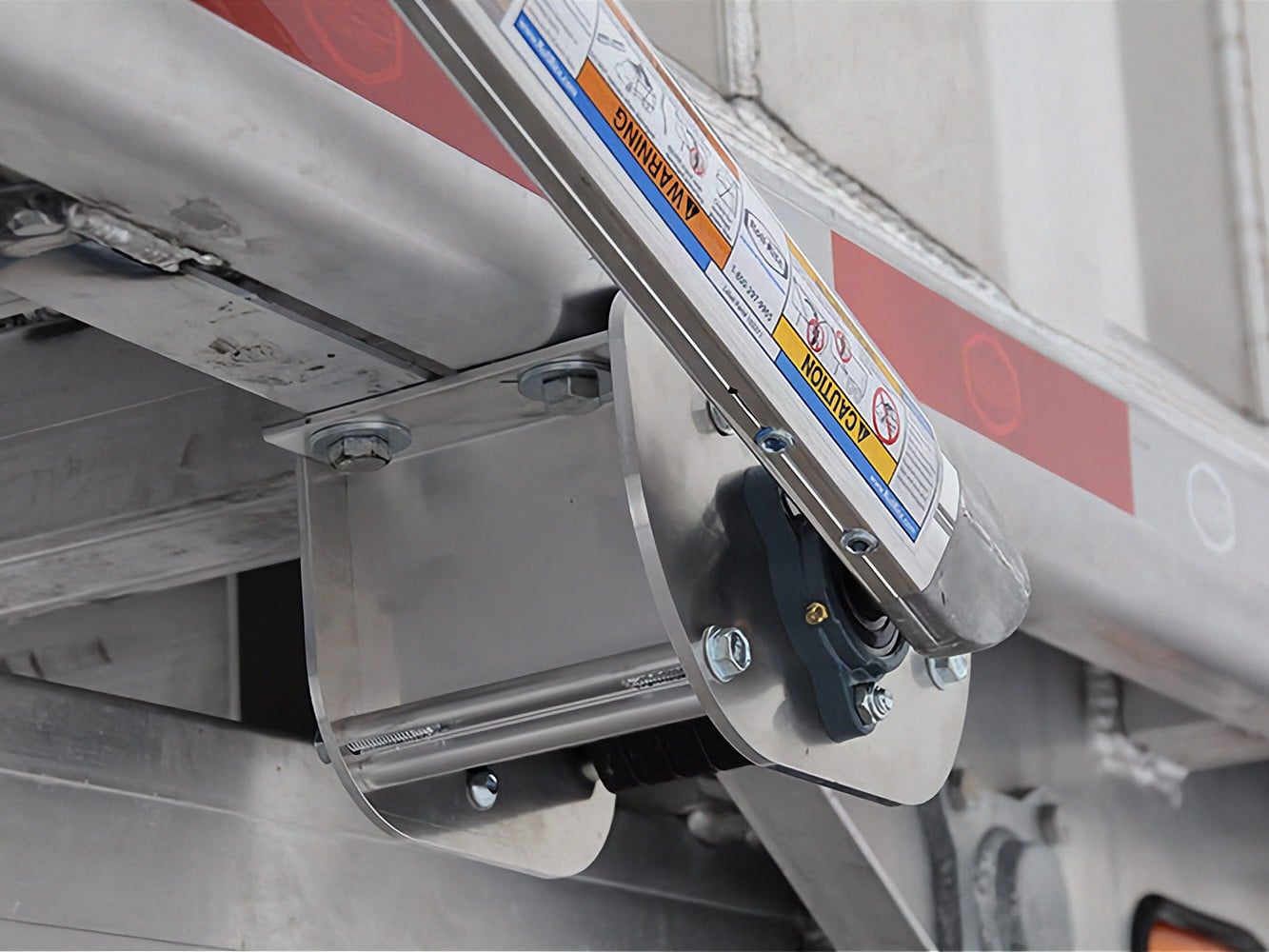

• Under-Body Spring Pivot Assembly (5 / 6 / 8 spring options)
• Pivot Tubes (model-specific lengths)
• Wide Bow Assembly for tarp support
• Mounting hardware and brackets

All systems are built with genuine Roll-Rite OEM components

Specifications

Specification	Details
Manufacturer	Roll-Rite
Series	Super Duty
Operation	Electric
Housing	98″ Integrated Aluminum
Pivot Style	Under-Body Pivot
Bow System	Wide Bow Set
Motor	12V Electric
Application	Dump, end dump, scrap & gondola trailers
Tarp Included	❌ No

Product Downloads & Manuals

Access official Roll-Rite documentation for installation and parts reference:

• SD5000 (65000) Parts List PDF
• SD6000 (66000) Parts List PDF
• SD8000 (68000) Parts List PDF
• Roll Rite Front To Back Installation Instructions
• Roll Rite Super Duty Series Overview

Typical Applications

• Dump trailers
• End dump trailers
• Scrap / recycling trailers
• Gondola trailers
• Aggregate hauling

Why Choose Roll-Rite Super Duty Systems

Roll-Rite tarp systems are trusted across North America for:

• Proven durability in harsh environments
• Smooth and reliable electric operation
• Heavy-duty construction for large trailers
• Long service life with minimal maintenance

The Super Duty Series is specifically designed for larger trailers and demanding applications where maximum tarp performance is required.

Important Notes

• Tarp is not included
• Designed for front-to-back tarp systems only
• Compatible with Roll-Rite electric controls and remotes
• Professional installation recommended
• System components may vary slightly by configuration

Note: Tarps are sold separately and can be selected during product configuration to match your trailer length and application.

For custom sizes or different tarp sizes, please visit our Heavy Duty Mesh Dump Trailer Tarps page.

FAQ

• Is this a complete tarp system?
  Yes, this is a complete tarp system excluding the tarp fabric.
• Is the tarp included?
  No, tarp must be purchased separately.
• How do I choose the right model?
  Use the Trailer Length Guide above or contact us for assistance.
• Is this compatible with dump trailers?
  Yes, it is designed specifically for dump, end dump, and scrap trailers.

📞 Need Help?

Call 1-855-851-4700 — Speak with a tarp system expert
