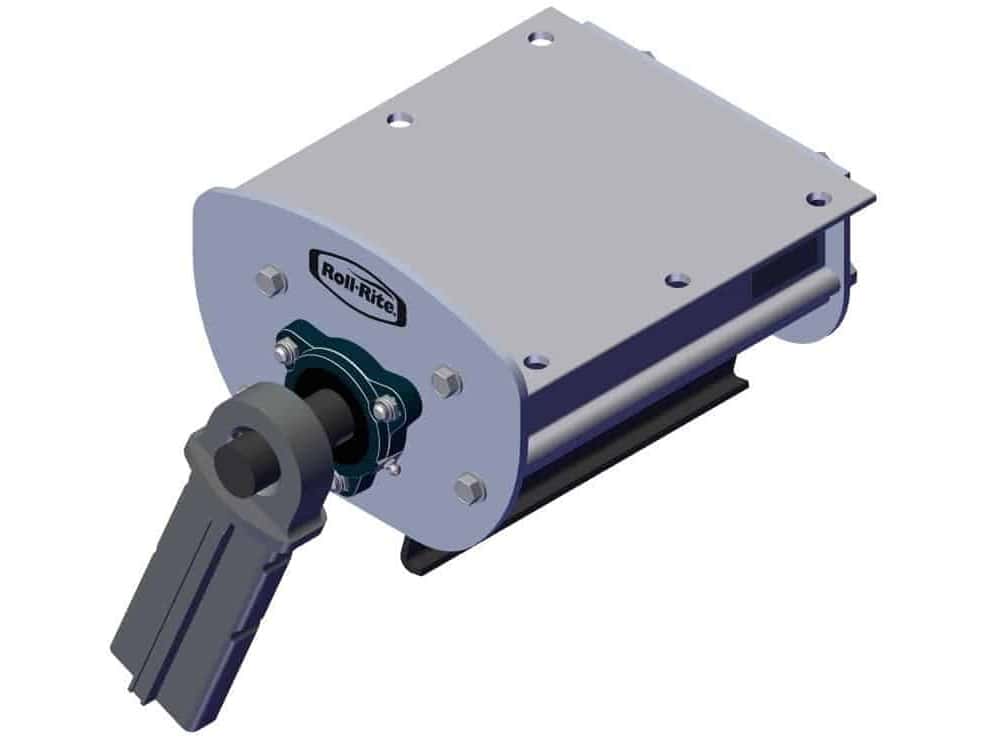

Roll Rite 101006, 16 Spring Extreme Duty Underbody Pivot – DS

Roll Rite 101006 16 Spring Extreme Duty Drivers side Underbody Pivot UB Assembled includes:

• 101004 Pivot Pin. for 16-Spring Ext Duty Roller Bearing – Driver
• 47010 Bushing. Pivot 1 1/4 Machinery Bushing for Pivot Pin
• 47000 Snap Ring. 1 1/4″ External for Pivot Pin
• 47800 Bearing. Carrier Underbody Flanged
• 47230 Spring. Spiral Torsion Spring 1 1/4″
• 18120 Bolt. 3/8″ x 1-1/2″ Thread Cutting Screw Hex Washer Hd
• 102349 Plate. Al Front for Ext Bolt Flange Mount UB Box
• 102581 Bracket. Ext Body with holes for 16 Spr UB Box
• 102259 Plate. Al Back for Ext Bolt Flange Mount UB Box

The product does not include a tube.

Download PDF:

• Parts List for 101006
