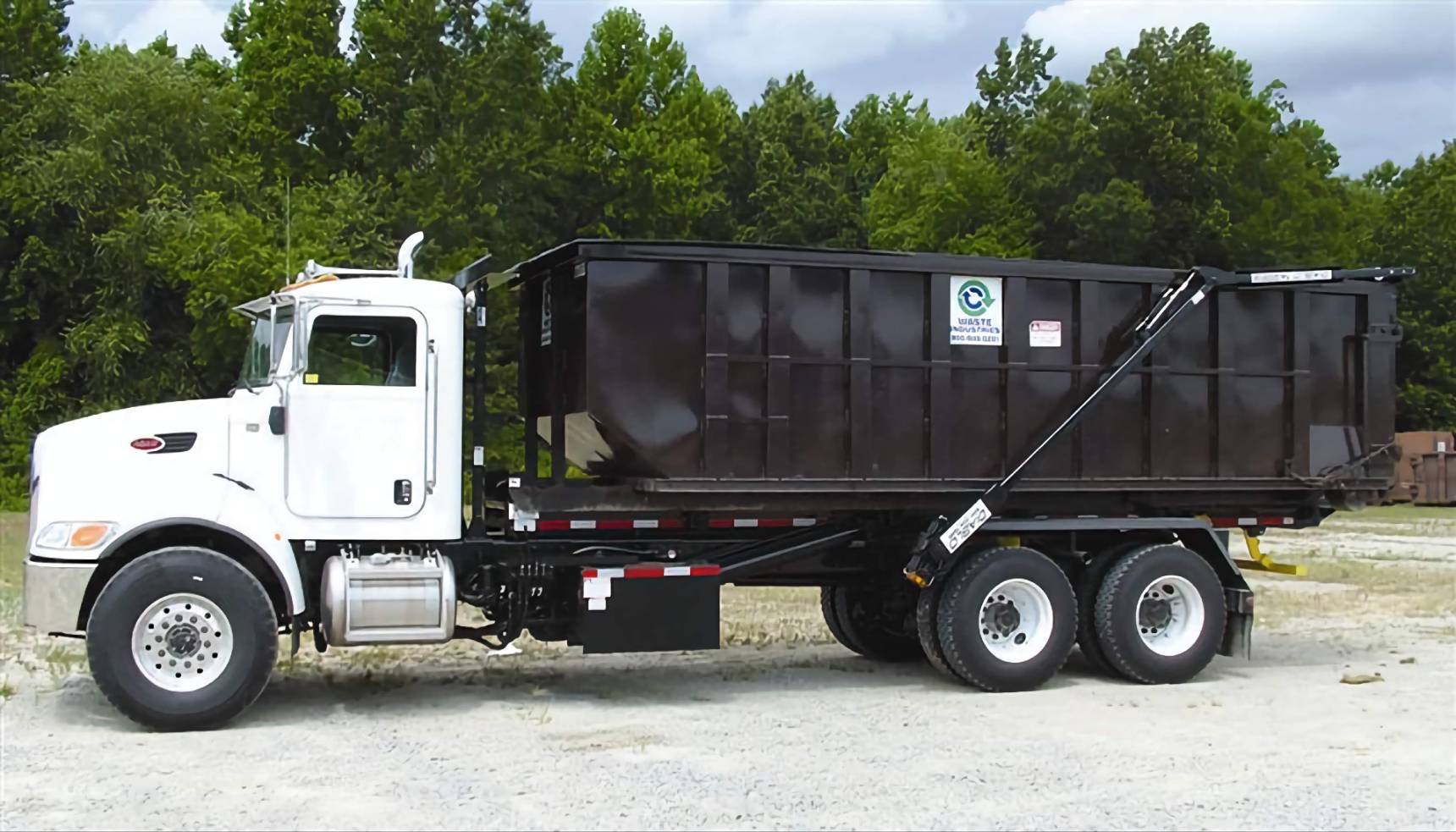

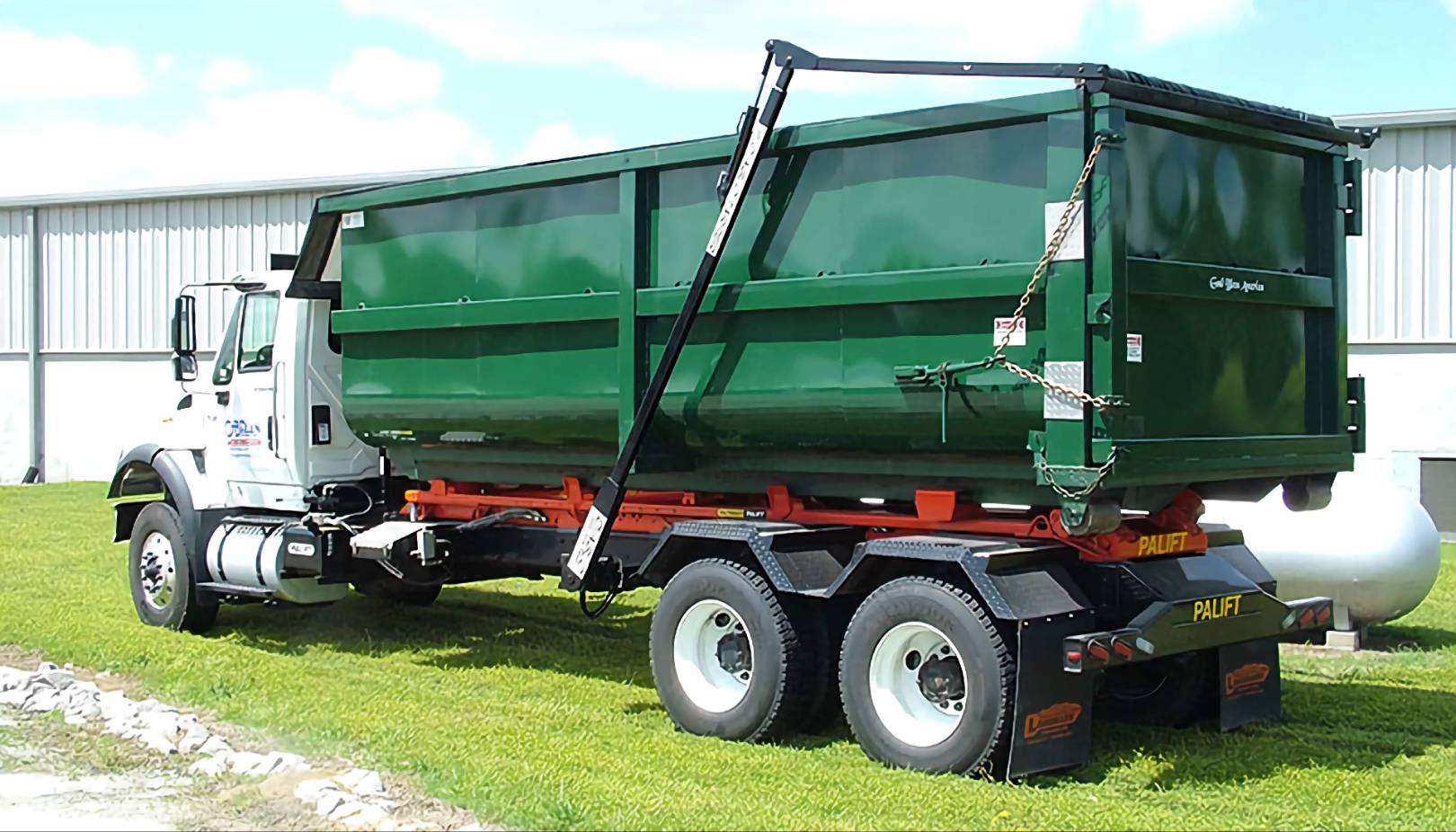

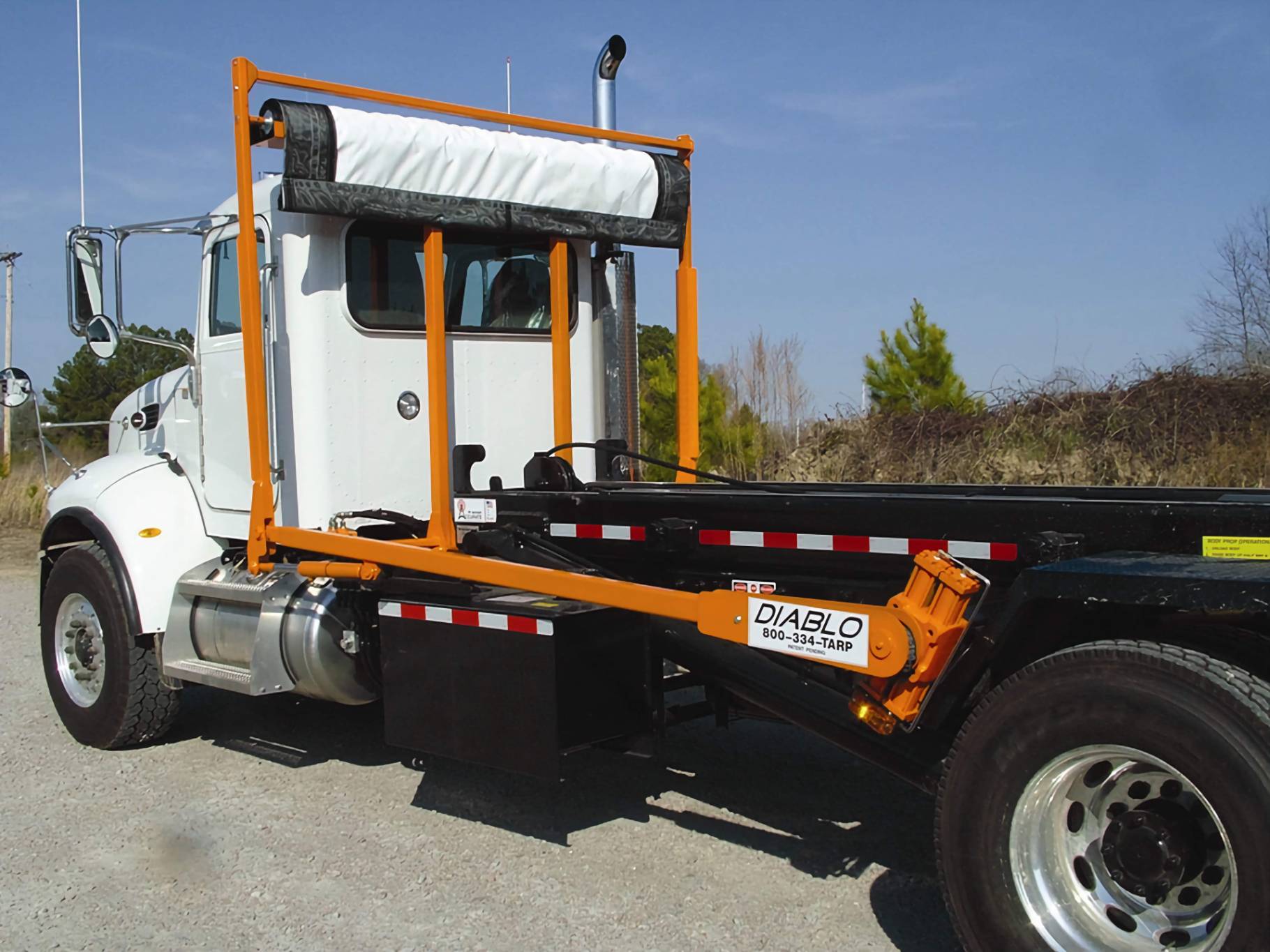

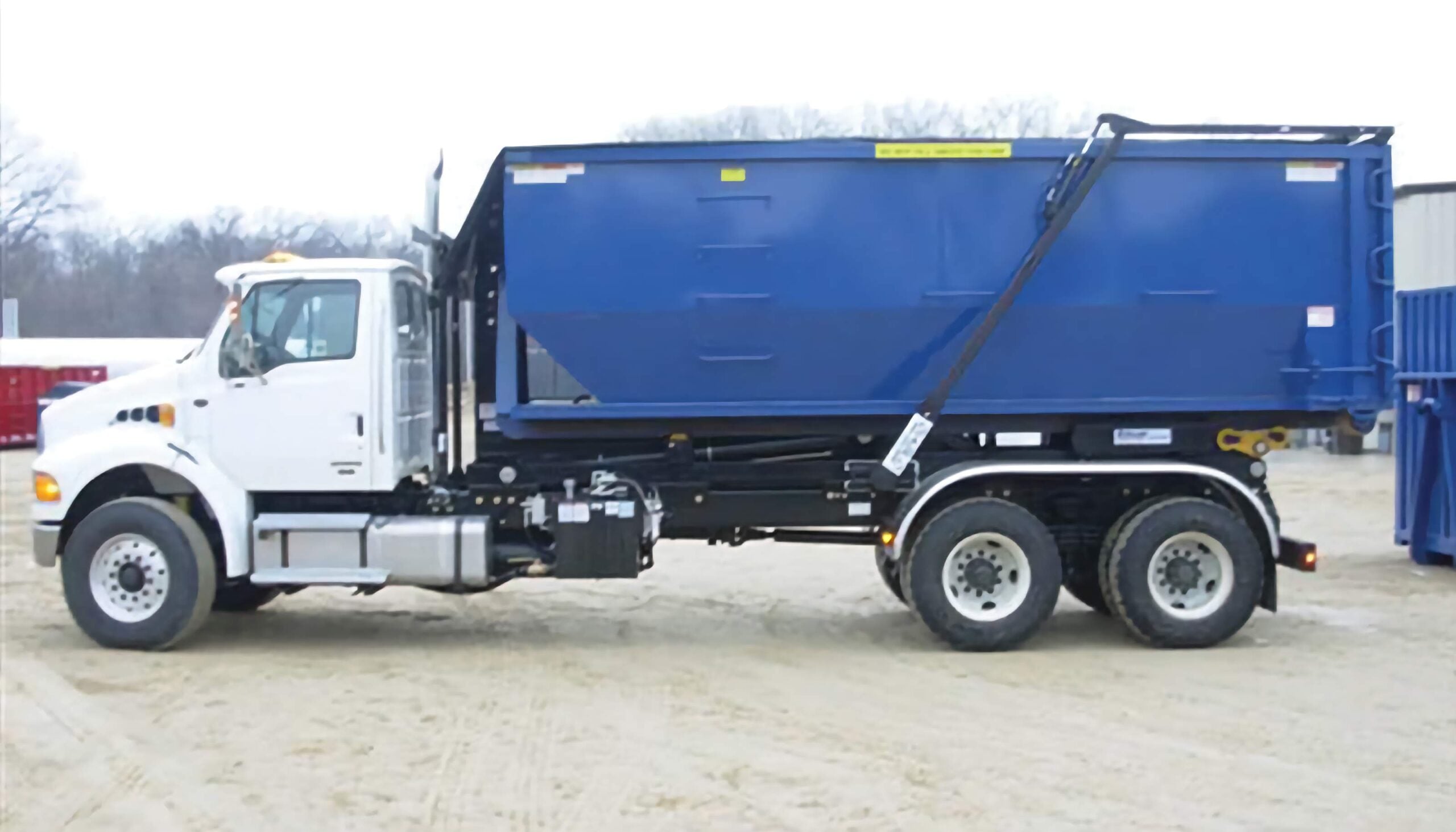

O’Brian Diablo Roll-Off Hoist Tarping System

The Diablo Tarping System handles 10-40 cubic yard containers (16′-22′) with the lowest profile design in the industry. At only 850 lbs installed, it gives you back the payload capacity you lost to emissions equipment while virtually eliminating damage from tight spaces and compactors.

Key Specifications

• Container Size: 10-40 yd³ (16′-22′ long)
• Weight: ~850 lbs installed
• Applications: Hook-lift and cable-lift compatible
• Construction: Grade A5 structural steel tubing
• Hydraulics: Enclosed rotary gear pivot in oil bath
• Bushings: Self-lubricating, maintenance-free
• Control: Single joystick operation
• Includes: Heavy-duty mesh tarp, tension wrench

Why Operators Choose Diablo

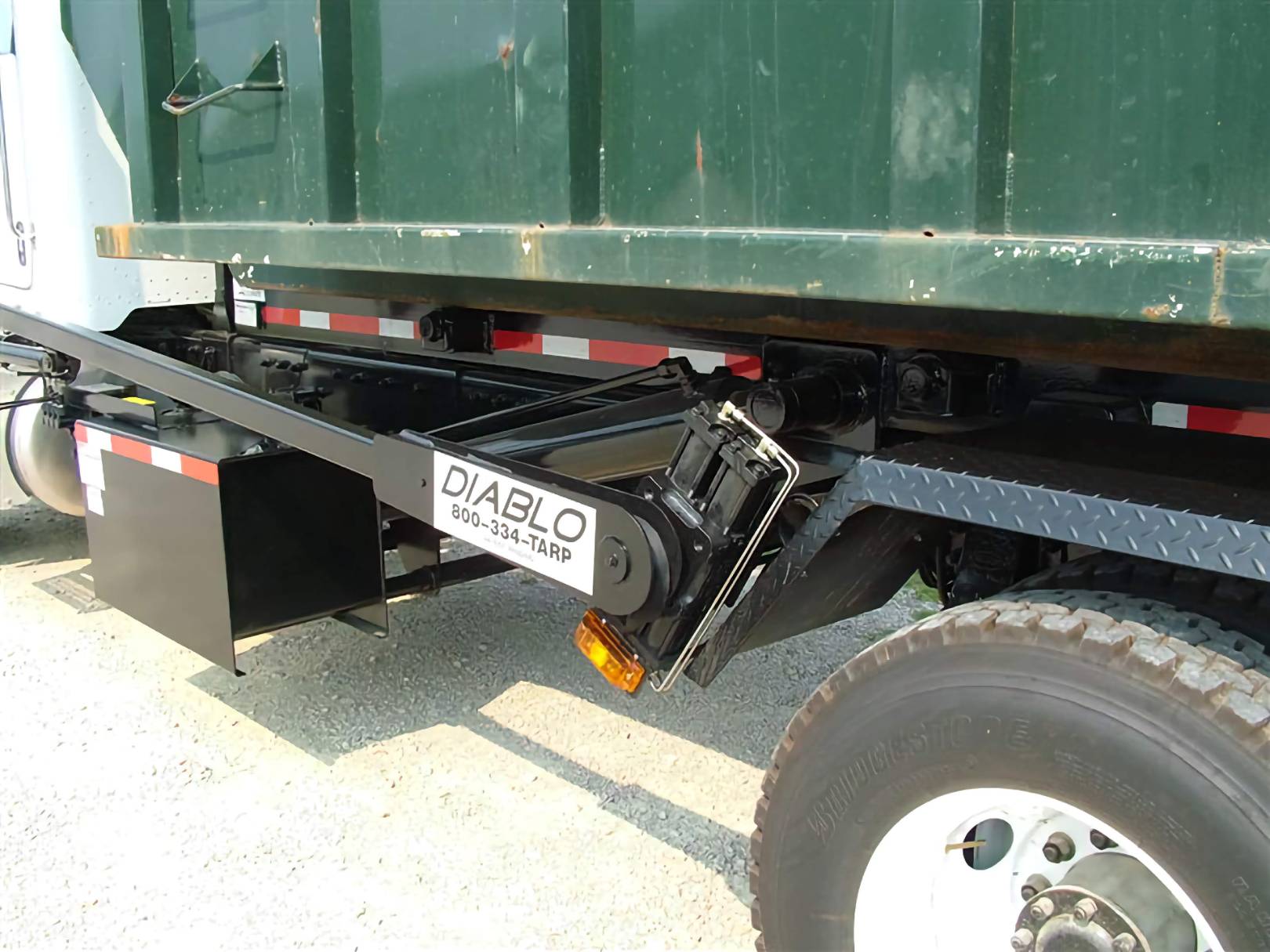

• Eliminates Damage: Ultra-low profile arms mount below and in front of containers and compactors, preventing 2 out of 3 things that destroy tarping systems. Less damage = less downtime = more profit.
• Maximizes Payload: At 850 lbs, you get back weight capacity that heavier systems steal. More payload per trip means more revenue.
• Cuts Maintenance: Self-lubricating bushings and sealed oil bath gears eliminate monthly greasing. Fewer service calls, more uptime.
• Full Coverage: Patented elbow arms let you position the roller exactly where needed for complete container coverage without overhang.
• Built to Last: 60+ years of O’Brian engineering with all components manufactured in-house to ISO 9001 standards. Not imported – built right.

The Diablo pays for itself by eliminating the two biggest costs in tarping systems: damage repairs and lost payload capacity. When you’re running containers daily, you need equipment that works every time without breaking your budget on maintenance or limiting your earning potential.

Available now and ready to ship across the U.S.

Need help choosing the right tarp system?  Contact our team — today—we’ll help you find the right fit for your truck.

Downloads:

• Diablo Brochure
• Diablo Installation Manual
• Diablo Actuator Service Manual
