KYM Tomahawk Tarp Motor

The KYM Tomahawk Tarp Motor (T-TOMAHAWK) is a high-speed 12V DC direct-drive electric tarp motor designed for flip-arm systems on dump bodies up to 28 feet. Its 60:1 gear ratio delivers 90–100 RPM for rapid tarp deployment.

Key Features

• High-Speed 60:1 Gear Ratio: Operates at 90–100 RPM for fast deployment on bodies up to 28 feet.
• Universal 5-Bolt Pattern: Designed for installation on cab shields and mounting brackets.
• Internal Holding Brake: Helps hold the tarp in position during transport.
• Included Motor Cover: Comes with a protective cover against weather and road debris.
• 3-Year Warranty: Includes a limited warranty against manufacturing defects.

Specifications

• Type: Direct-drive electric tarp motor
• Power Rating: 600W | 12V DC
• Gear Ratio / Speed: 60:1 | 90–100 RPM
• Max Torque: 44 Nm (32.4 lb-ft) at 40A draw
• Output Shaft: 3/4″ x 3-3/4″ round shaft with twin 5/16″ through-holes
• Dimensions: 12″ L x 6.5″ W x 4″ H
• Warranty: 3 years

Replacement Compatibility

Listed cross-references for 60:1 direct-drive tarp motors:

• US Tarp: 13732
• Donovan: 61G
• Aero: 0755-623474
• Mountain Tarp: K0170S

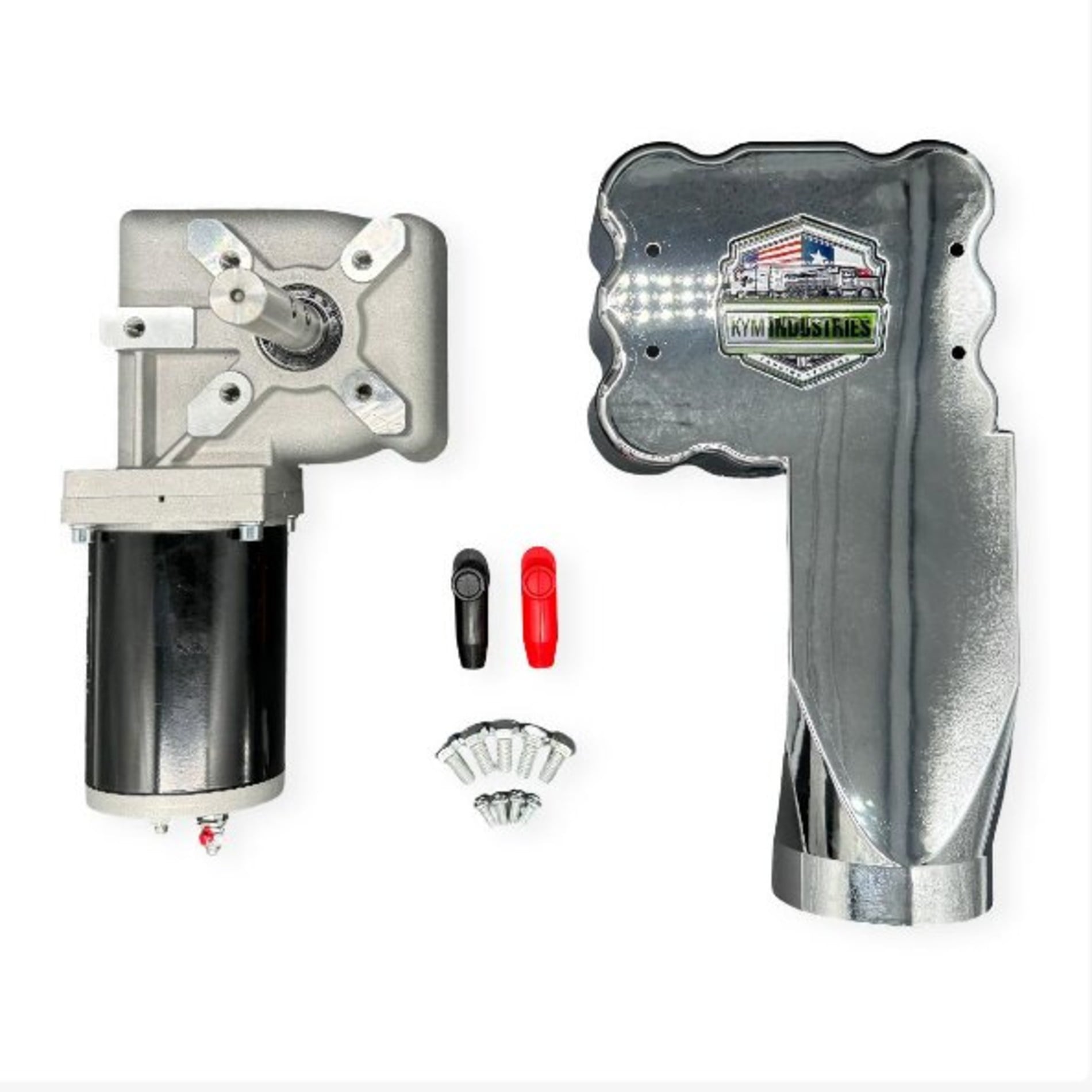

What’s Included

• (1) Tomahawk 12V 60:1 direct-drive tarp motor
• (1) Motor cover and mounting fasteners
