KYM Superforce Tarp Motor

The KYM Superforce Tarp Motor (T-SFORCE) is a high-speed 12V DC direct-drive electric tarp motor for flip-arm systems on dump bodies up to 28 feet. Its 60:1 gear ratio delivers rapid 90–100 RPM deployment with high continuous pulling force.

Key Features

• 60:1 High-Speed Output: Operates at 90–100 RPM for fast extension on bodies up to 28′.
• Universal 5-Bolt Pattern: Pre-drilled for direct-drop installation on standard mounting plates.
• Internal Holding Brake: Worm-gear brake locks the axle to keep tarps tight during transport.
• Chrome Cover Included: Shields motor armature, terminals, and gears from moisture and salt.

Specifications

• Part Number: T-SFORCE
• Vendor: KYM Industries / TSI
• Type: Direct Drive
• Power / Voltage: 600W | 12V DC (40A draw)
• Gear Ratio / Speed: 60:1 | 90–100 RPM
• Operating Torque: 135Nm
• Dimensions: L: 11.625″, W: 5.75″, H: 6.25″

Replacement Compatibility

Direct cross-reference for 60:1 direct-drive electric tarp motors:

• Aero: PowerPlus & RS/RA
• Donovan: 61G / 61L / 4422
• Pulltarps: 517-0906 / 517-0909
• Roll-Rite: 1030 / 1031
• SHURCO: 1703823
• Superwinch: 90-33319 / 90-33295
• TARPS AND BEYOND: 1000XT / 2000XT
• TSI: Apache, Tomahawk, Enforcer
• US Tarps: 11521 / 13655

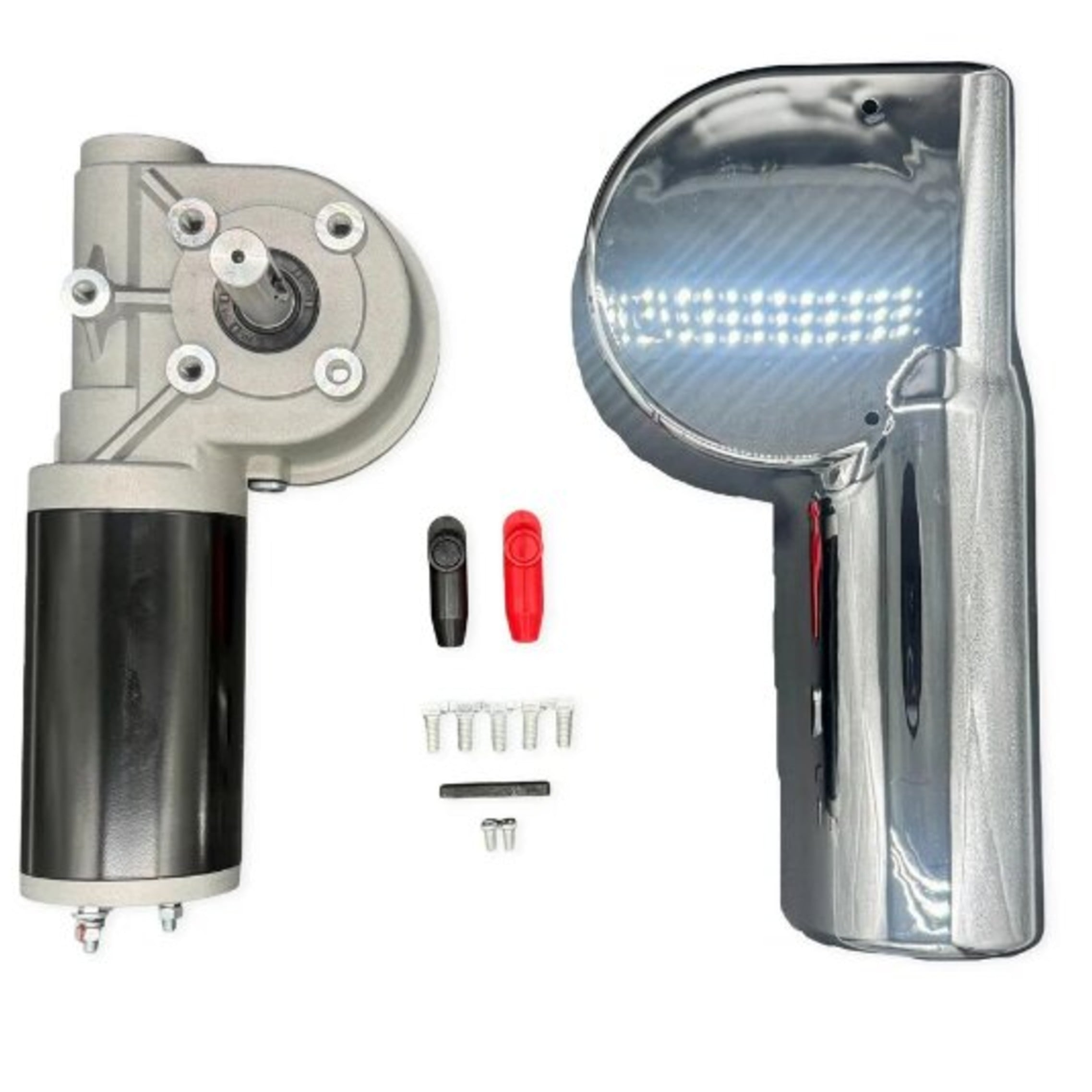

What’s Included

• (1) Superforce 12V 60:1 Direct-Drive Tarp Motor
• (1) Protective Chrome Cover & Fasteners
