KYM Supercinch Tarp Motor

The KYM Supercinch Tarp Motor is a heavy-duty 12V direct-drive motor designed for electric front-to-back tarp systems. With a 1500W motor, 90:1 gear ratio, and 127 Nm operating torque, the Supercinch provides the power needed for demanding electric tarp applications.

A universal 3, 4, or 5-bolt mounting pattern makes the Supercinch a versatile replacement motor for many front-to-back tarp setups. The motor uses a 3/4″ x 2-1/4″ output shaft with two 5/16″ through-holes for connection to the tarp system.

Key Features

• Heavy-Duty 90:1 Gear Ratio: High-torque output drives long bodies and heavy arm tension with controlled speed.
• Universal Multi-Bolt Pattern: Pre-drilled for 3, 4, and 5-bolt mounting to allow rapid field replacement.
• Internal Holding Brake: Maintains tight tarp tension and locks side arms securely during transport.
• Weather-Sealed Casing: Heavy-duty housing shields gears, armature, and bearings from salt and moisture.
• 5-Year Extended Warranty: Covered by an industry-leading 5-year warranty against manufacturing defects.

Specifications

• Part Number: T-SUPERCINCH
• Vendor: KYM Industries / TSI
• Type: Direct-Drive 12V DC Electric Motor
• Power Rating: 1500W (1.8 HP class)
• Gear Ratio / Speed: 90:1 | 45 RPM
• Torque: 127 Nm
• Output Shaft: 3/4″ x 2-1/4″ round with twin 5/16″ through-holes
• Dimensions: 11.625″ L x 5.75″ W x 6.25″ H

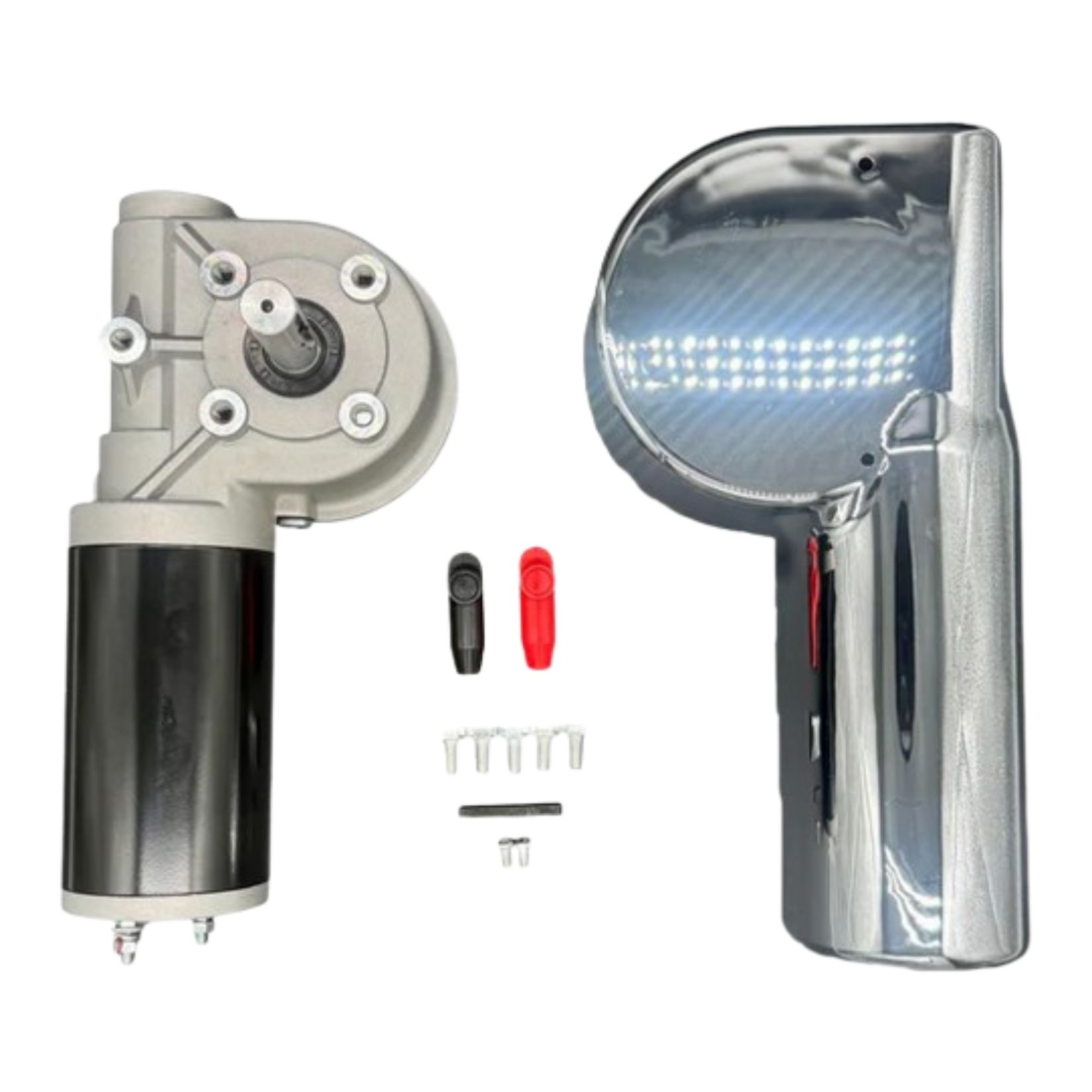

What’s Included

• (1) Supercinch 12V 90:1 Direct-Drive Tarp Motor
• (1) Chrome/Protective Motor Cover & Hardware
