KYM Enforcer Tarp Motor

The KYM Enforcer Tarp Motor is a heavy-duty 12V direct-drive replacement motor for electric tarp systems on dump trucks and trailers up to 38 feet long. With a 90:1 gear ratio, 1200W motor, and 50 Nm (36.9 lb-ft) maximum torque, the Enforcer is built for larger tarp applications that need more power than a standard replacement tarp motor.

The motor uses a 3/4″ x 3-3/4″ output shaft with two 5/16″ through-holes and a universal mounting pattern, making it a replacement option for a wide range of electric tarp systems. Its worm-to-wheel gearbox provides inherent braking to help hold the tarp system in position when the motor is stopped.

Key Features

• Heavy-duty 12V electric tarp motor
• Designed for dump truck and trailer tarp systems up to 38′ long
• 90:1 gear ratio
• 1200W motor
• Maximum torque of 50 Nm / 36.9 lb-ft
• 50 RPM output speed
• 3/4″ x 3-3/4″ output shaft
• Two 5/16″ through-holes in the output shaft
• Worm-to-wheel gear drive
• Inherent braking
• Universal mounting configuration for replacement applications
• 5-year warranty

Electric Tarp Motor Specifications

• Part Number: T-ENFORCER
• Type: Direct Drive
• Voltage: 12V
• Power: 1200W
• Gear Ratio: 90:1
• Maximum Torque: 50 Nm / 36.9 lb-ft
• Current Draw at Rated Torque: 40 Amps
• Speed: 50 RPM
• Gear Type: Worm to Wheel
• Output Shaft: 3/4″ x 3-3/4″
• Output Shaft Holes: Two 5/16″ through-holes
• Mounting: Three 5/16″-18 bolts
• Braking: Inherent
• Dimensions: 12″ L x 6.5″ W x 4″ H
• Recommended Wire Size: 6 AWG
• Maximum Tarp System Length: 38′

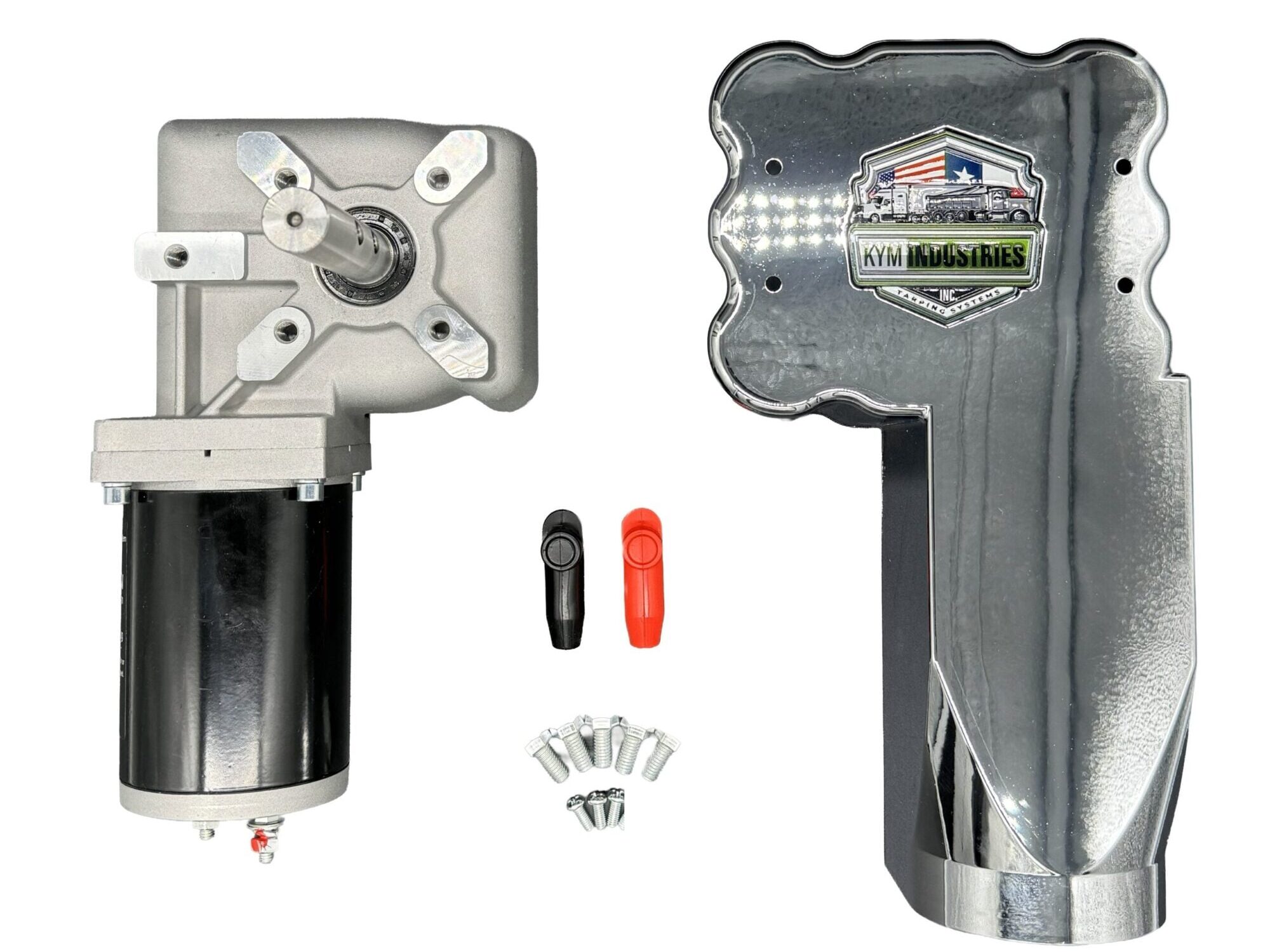

What’s Included

• 1 – KYM T-ENFORCER 90:1 Tarp Motor
• 1 – Plastic Chrome Motor Cover
• 3 – M8 x 16mm Socket Head Cap Screws
• 5 – M8 x 16mm Hex Head Screws
• 3 – Rubber Washers

Compatibility

The T-ENFORCER is designed as a replacement motor for compatible electric tarp systems using a 3/4″ tarp spool connection. It is designed for tarp systems on dump bodies and trailers up to 38 feet long.

It replaces the following tarp motor part numbers:

• Buyers 5541095
• US Tarp 13957
• Aero 0755-627005
• Cramaro 164905

For other tarp systems, verify the 3/4″ output shaft, mounting pattern, electrical requirements, and available mounting space before ordering.
