KYM Axle Bearing With Flange 3/4″ Hole

The KYM Axle Bearing with Flange 3/4″ Hole (T-ABWF-A) is a 3-piece flanged roller bearing assembly designed to support and stabilize rotating upper tarp axles on manual and electric dump body tarp systems. It reduces rotation friction and prevents axle shaft binding under heavy load tensions.

Key Features

• 3-Piece Flanged Bearing Design: Heavy-duty bearing sandwiched between steel flange plates to ensure proper axial alignment and support.
• System Quantity Requirement: Electric tarp setups require 1 axle bearing (on the driver-side or passenger-side non-motor end shaft), while manual crank systems require 2 axle bearings.
• 3-Inch Bolt Hole Center Spacing: Features standard 3″ center-to-center mounting holes for direct bolt-on replacement to mounting brackets or cab guards.
• Hardware Included: Comes complete with all necessary bolts and nuts to fasten the 3-piece flange assembly.

Specifications

• Part Number: T-ABWF-A
• Vendor: KYM Industries / TSI
• Inner Shaft Diameter: 3/4 Inch (0.75″)
• Bolt Hole Spacing: 3 Inches Center-to-Center
• Material: Heavy-Duty Steel Flanges & Ball Bearing Insert
• Application: Upper tarp roller axle support for front-to-back systems

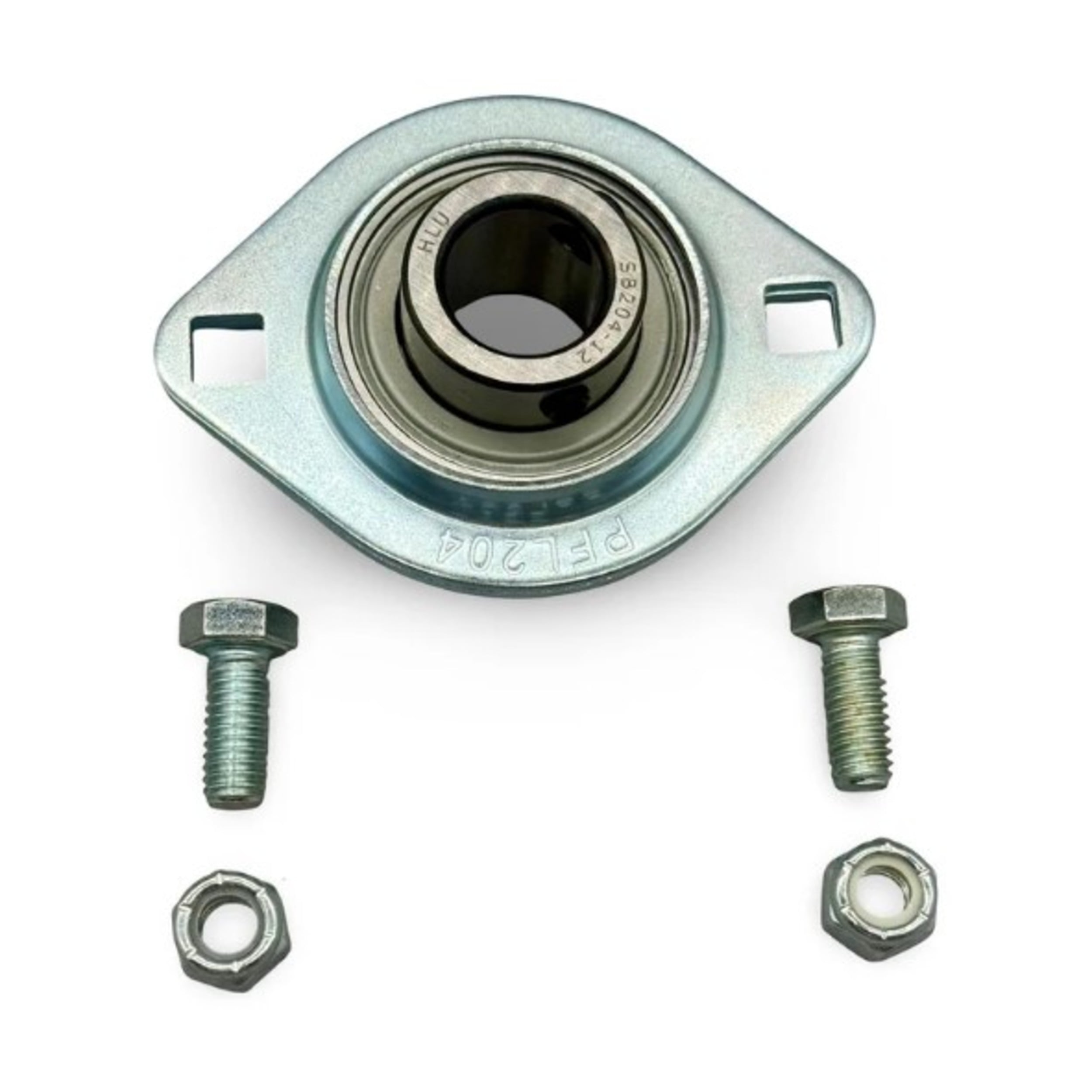

What’s Included

• (1) 3/4″ Inner Diameter Ball Bearing Insert
• (2) Steel Flange Housing Plates
• Full Assembly Fastening Bolt & Nut Hardware Kit
