E-Cargo 101A1002-BJ1 Internal Tensioner-BJ1

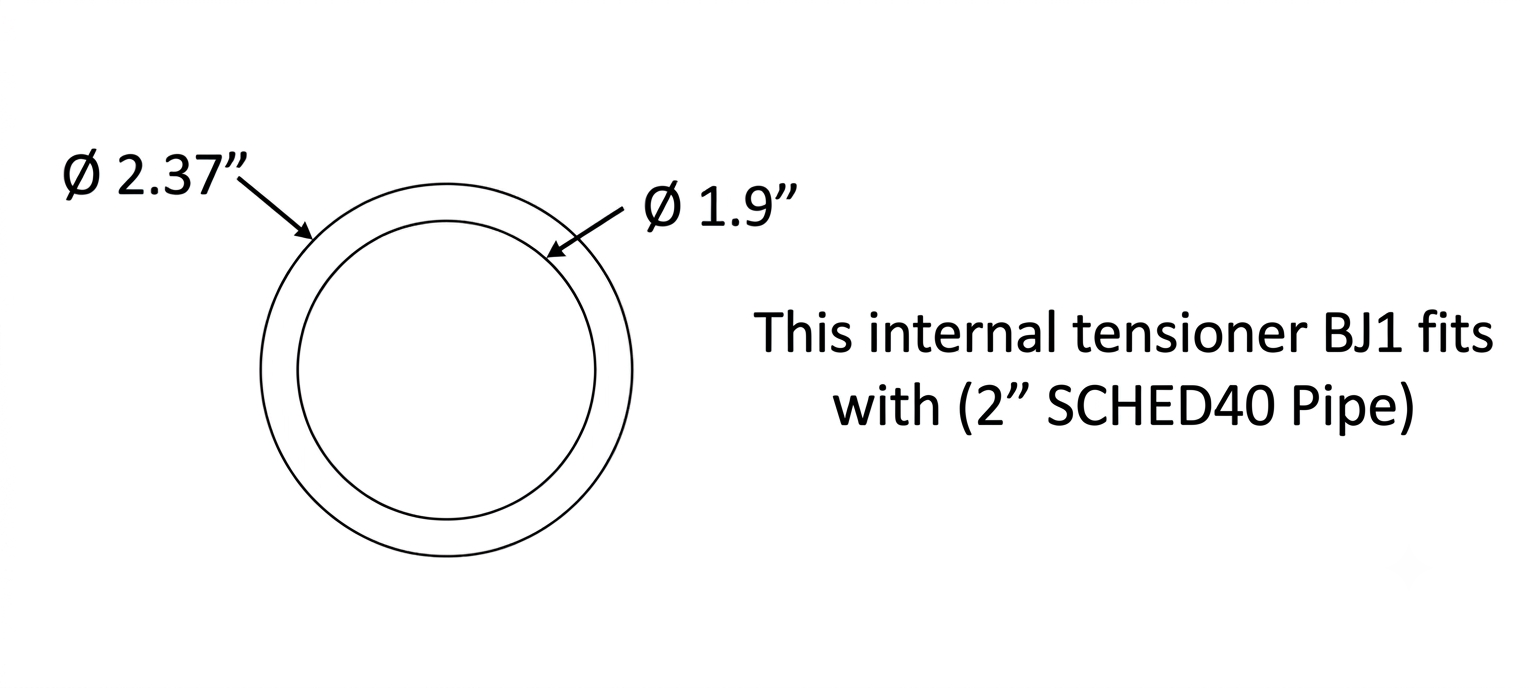

This BJ1 Internal Tensioner is designed specifically for E-Cargo side roll tarp systems using standard 2″ Schedule 40 aluminum roll pipe.

If your E-Cargo side roll tarp system uses standard 2″ Schedule 40 aluminum roll pipe, the BJ1 is the correct replacement internal tensioner.

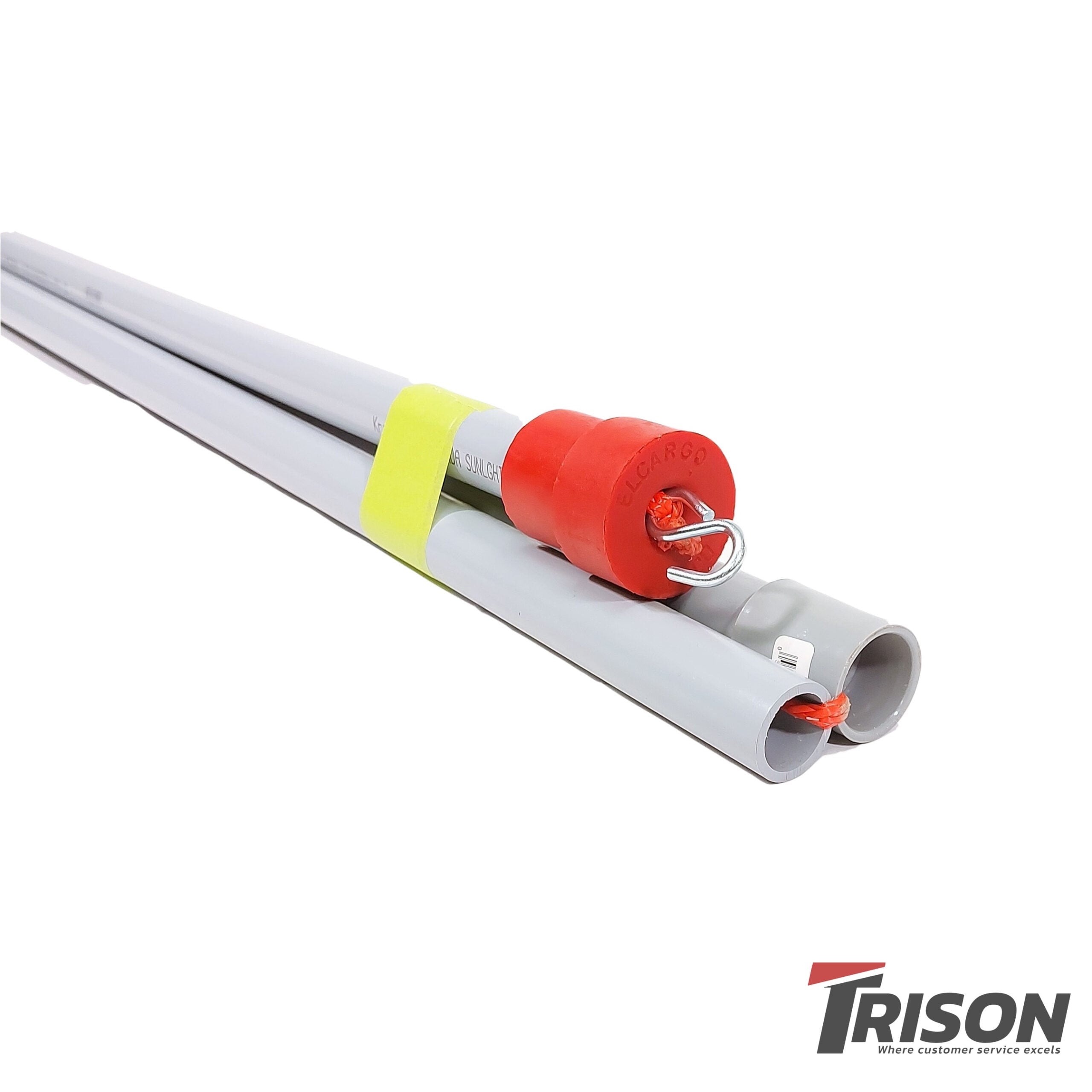

This replacement internal tensioner comes fully assembled with the spring, tube, rope, hook, and molded end plug, ready for installation. All BJ-series internal tensioners use the same spring, tube, rope, and hook. The only difference is the molded end plug, which is designed to match a specific roll pipe profile. The BJ1 molded end plug is designed exclusively for standard 2″ Schedule 40 aluminum roll pipe and is not compatible with any other roll pipe profile.

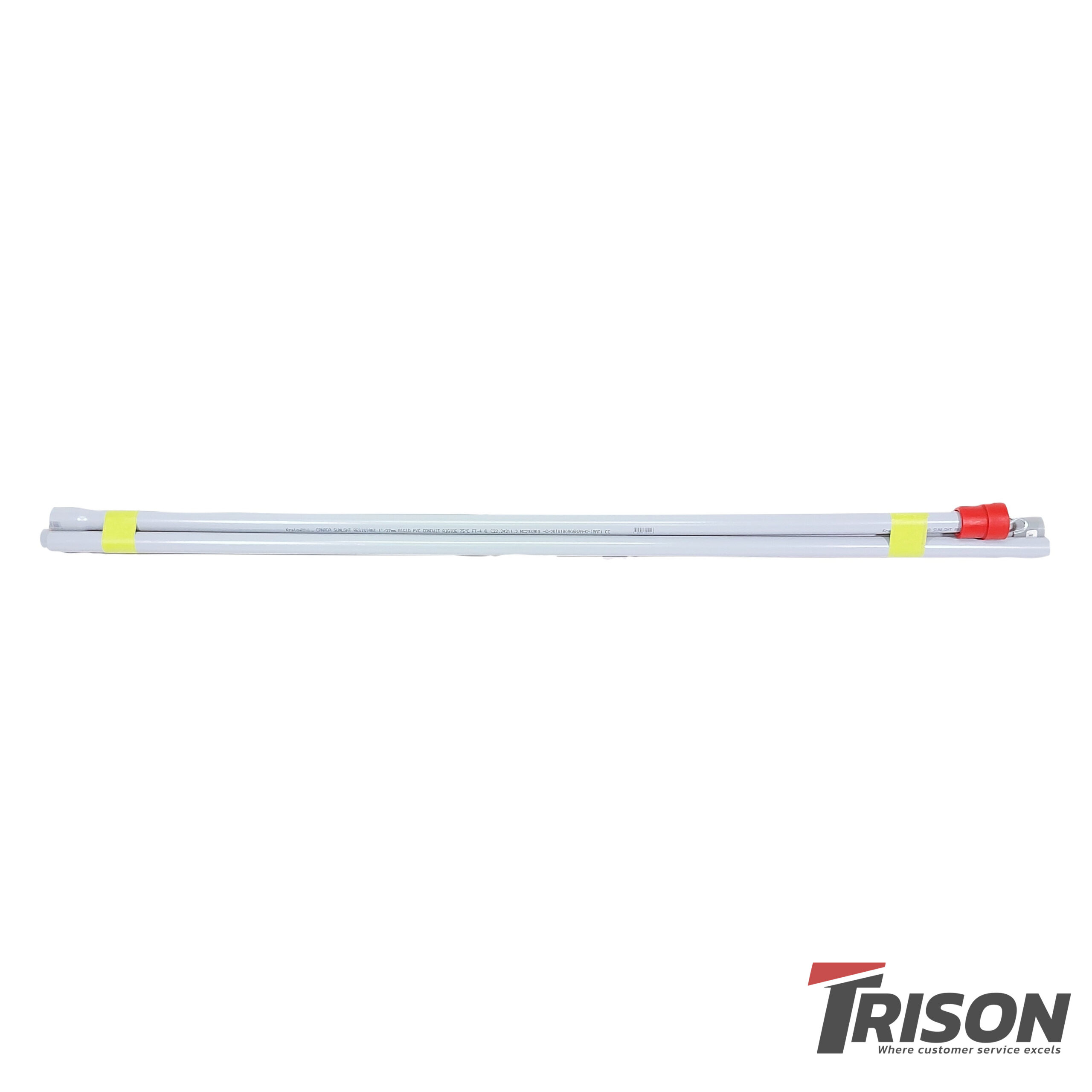

To reduce shipping costs, the tensioner ships in a compact, collapsible configuration. No assembly is required. Simply unfold the tube, snap the two sections together, and the tensioner is ready to install into your roll pipe.

Looking for a different version?

• BJ2 – Fits E-Cargo 3″ Roll Pipe
• BJ6 – Fits Trison & Other 2″ Outside Diameter (OD) Galvanized Roll Pipe
• BJ10 – Fits Trison 3″ Roll Pipe

Installation Guide

• Download Spring & Cable Replacement Instructions (PDF)
