Cramaro Flip N Go™ Electric Dump Trailer Tarp System

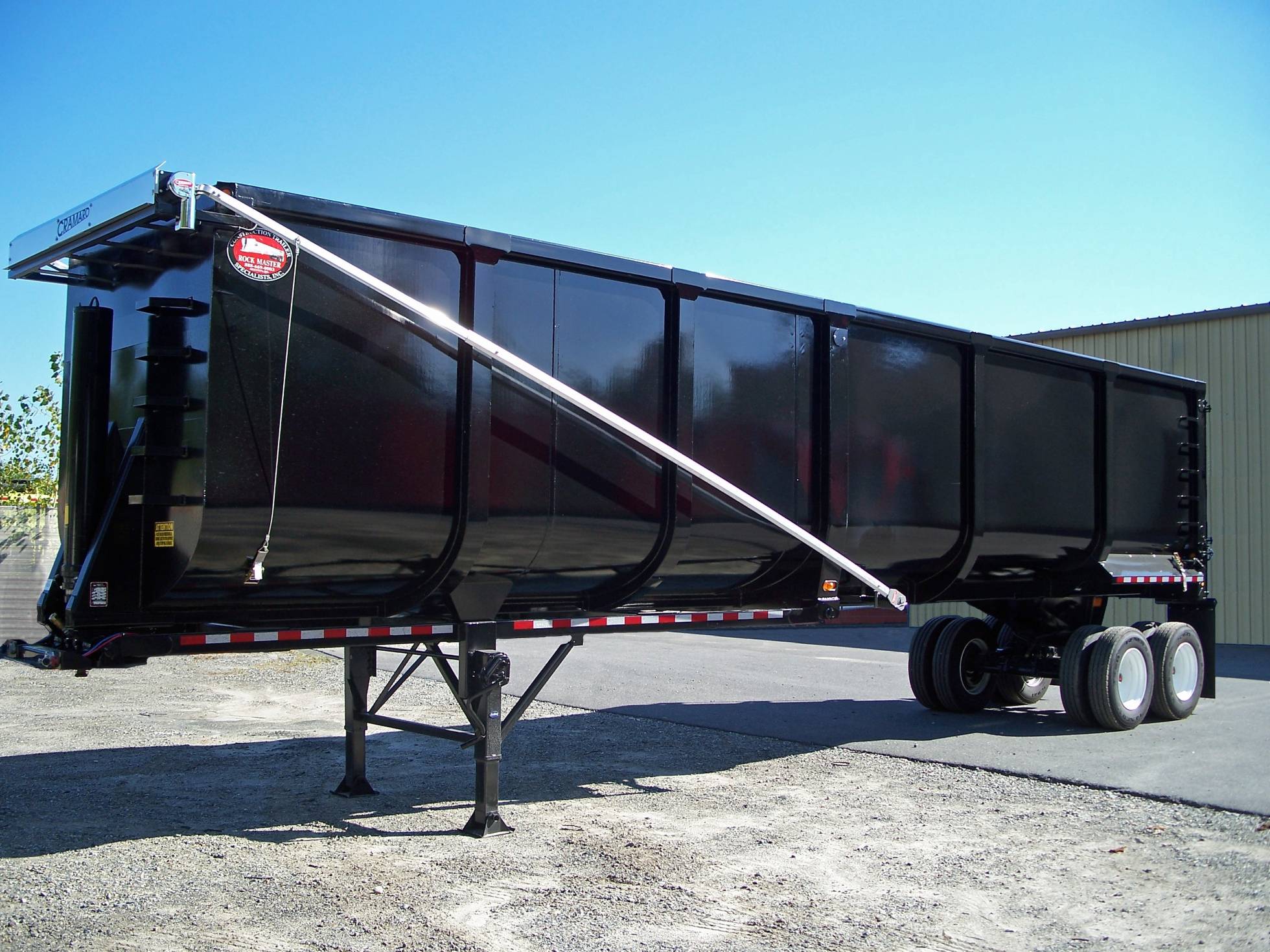

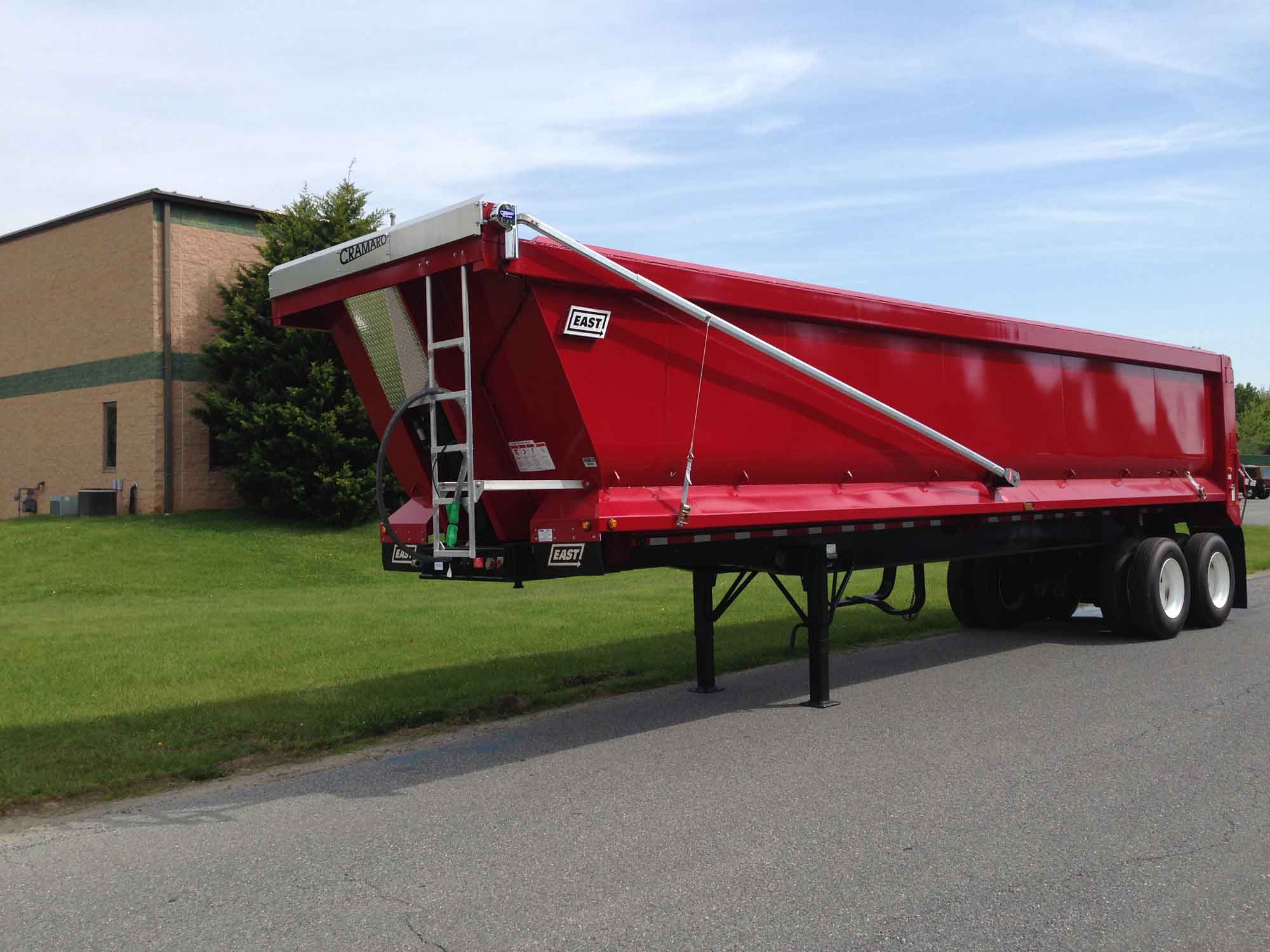

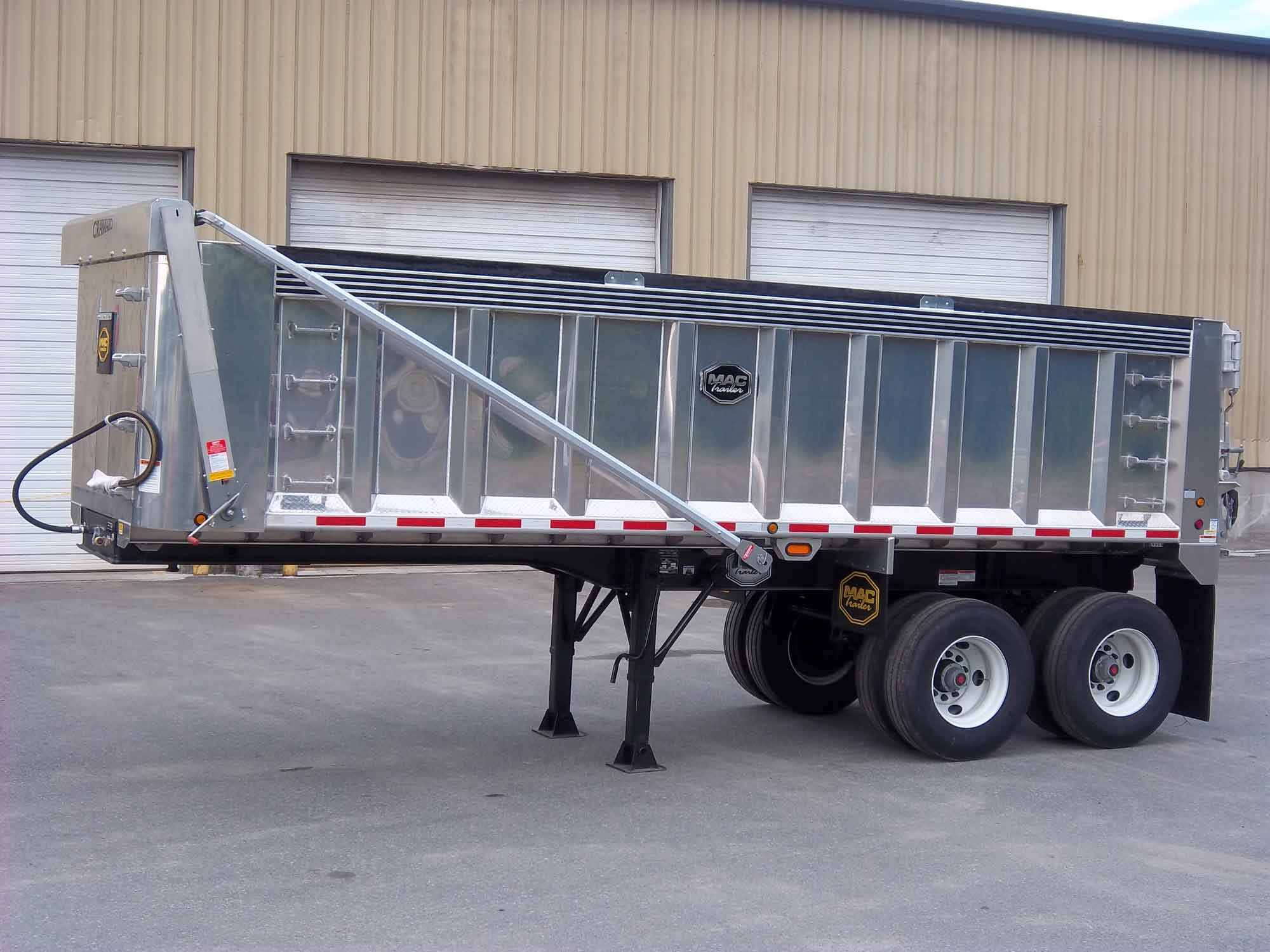

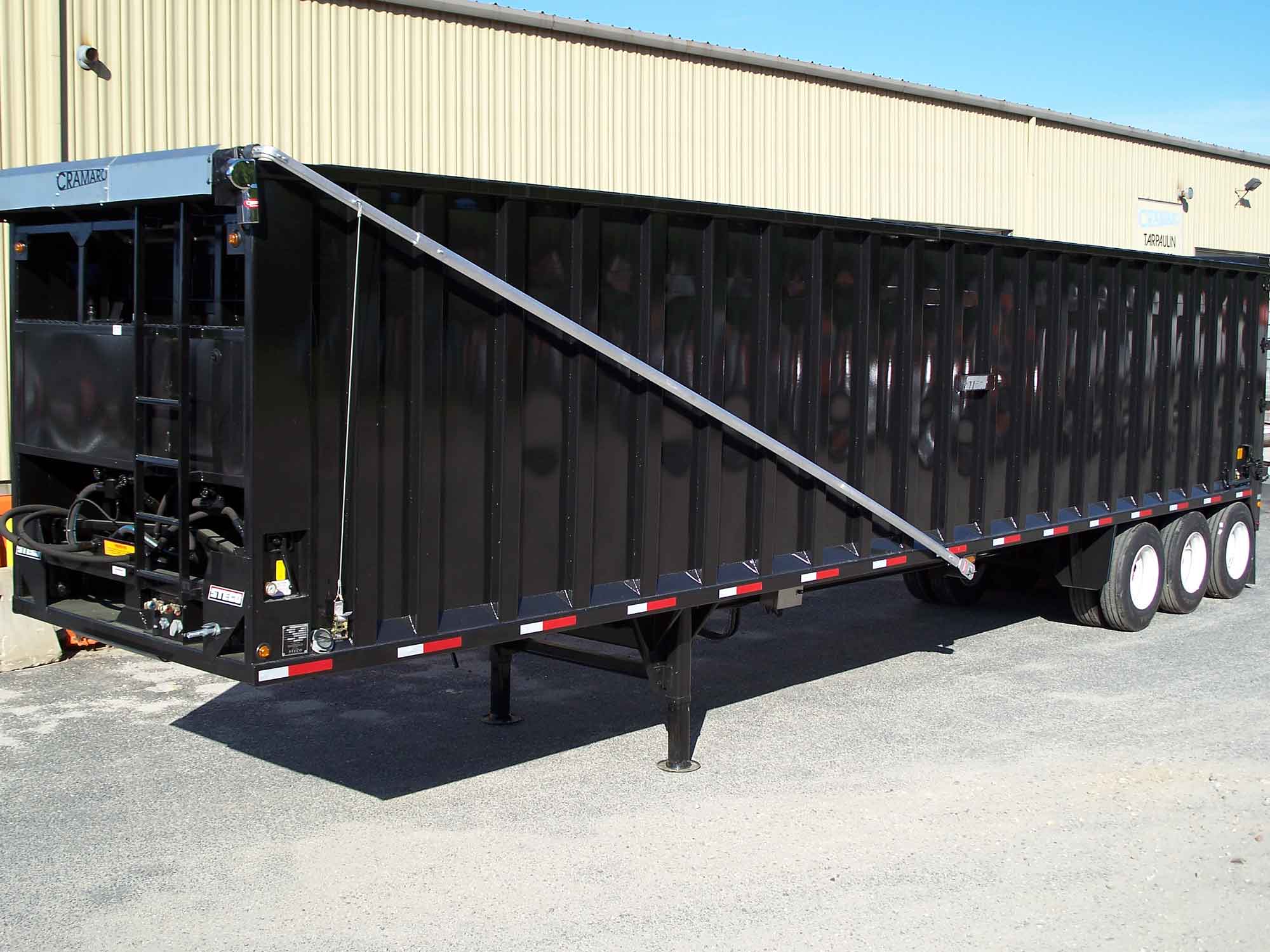

The Cramaro Flip N Go™ Electric Tarp System is a premium heavy-duty tarp system designed for dump trailers and extended-length applications from 31′ to 50′. Built for demanding hauling environments, this front-to-back flip system delivers reliable coverage, strong arm support, and consistent tarp tension across long trailer bodies.

Powered by a 900W 12V electric motor with a 90:1 gear ratio, the system provides dependable torque and smooth operation, allowing operators to open and close the tarp efficiently. The design is built for durability and reduced maintenance, making it well-suited for high-cycle use in tough conditions.

The system features heavy-duty diamond-profile aluminum arms, engineered for strength and rigidity over long spans. Arm length varies by selected configuration:

• 31’–40′ systems include 15′ aluminum arms
• 41’–50′ systems include 20′ aluminum arms

A 13/16″ heavy-duty side-mount torsion spring system on both driver and passenger sides maintains consistent tarp tension, ensuring smooth operation when covering heaped or uneven loads such as gravel, sand, and asphalt.

This system also includes an aluminum two-piece wind deflector. For trailers with radius or chamfered corners, a tarp housing assembly is recommended as an optional component.

Built with heavy-duty cast iron tarp roller bearings, the Flip N Go™ system is designed to withstand demanding applications while maintaining reliable long-term performance.

Product Overview

• 900W 12V motor (90:1 gear ratio) – strong, reliable operation
• Designed for 31’–50′ dump trailers (based on selected option)
• Diamond-profile aluminum arms – high strength for long spans
• 13/16″ side-mount torsion springs – balanced tension on both sides
• Front-to-back tarp movement – effective for uneven and heaped loads
• Heavy-duty roller bearings – improved durability and service life

What’s Included

• 12V electric motor assembly (900W, 90:1 gear ratio)
• Aluminum arm system (based on selected size)
  • 15′ arms (31’–40′ system)
  • 20′ arms (41’–50′ system)
• Aluminum two-piece wind deflector
• Side-mount torsion spring assemblies (driver & passenger side)
• Heavy-duty cast iron tarp roller bearings
• Mounting brackets and hardware
• Installation instructions

Optional Components (Not Included)

• Tarp housing assembly
  Recommended for radius or chamfered corners
• Header assembly (for improved front sealing and tarp control)
• Arm bend elbow castings (for clearance or custom configurations)
• Rear arm support / stopper brackets
• Underbody mounting brackets (for round bottom or tub-style trailers)
• Optional remote control systems (if available separately)

Available Size Options

• 31’–40′
  Designed for mid-length dump trailers and standard end dump applications
• 41’–50′
  Designed for extended and long dump trailers requiring greater reach

Applications

Designed for:

• Dump trailers
• End dump trailers
• Long-body hauling applications

Suitable for:

• Sand, gravel, dirt
• Asphalt
• Bulk and high-volume materials

Warranty:

• 3-year warranty on motor
• 1-year manufacturer warranty on system

Why Choose Flip N Go™

• Built for long dump trailer applications
• Handles heaped and uneven loads
• Strong aluminum arm design for long-span coverage
• Reliable electric operation for demanding use
• Configurable for a variety of trailer body styles

See our available sizes for:

• Heavy Duty Mesh Dump Trailer Tarps

PDF Downloads:

• FNG Overview
• FNG Installation Instructions & Part List

Need further information or assistance? Reach out to us—we’re here to provide expert help.
