Roll Rite 103302 Pivot, Pivot, UB Assembly – 16-Spring Driver Side (Without Tube)

Roll Rite 103302 Pivot, UB Assembly – 16-Spring Driver Side (Without Tube) is a genuine OEM Roll·Rite pivot assembly designed for 16-spring underbody mount tarp systems. This passenger-side pivot assembly supports the tarp arm mechanism and provides smooth pivot movement for reliable tarp operation on heavy-duty dump truck tarp systems.

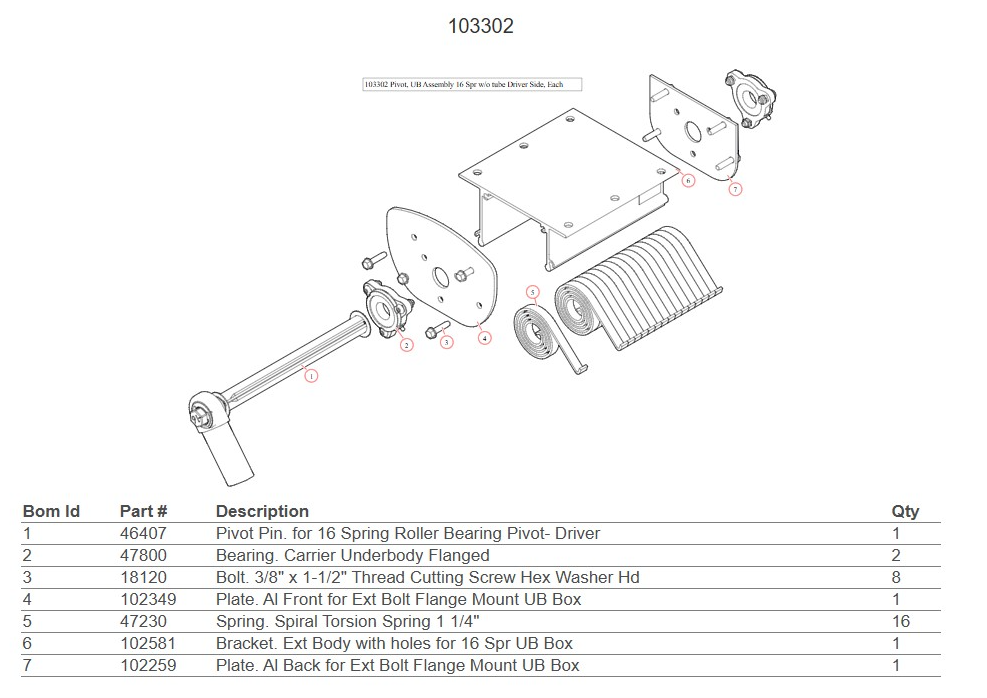

Includes

• (1) 46407 – Pivot Pin for 16-Spring Roller Bearing – Driver
• (2) 47800 – Carrier Underbody Flanged Bearings
• (8) 18120 – 3/8″ × 1-1/2″ Thread Cutting Hex Washer Head Bolts
• (1) 102349 – Aluminum Front Plate for Ext Bolt Flange Mount UB Box
• (16) 47230 – 1-1/4″ Spiral Torsion Springs
• (1) 102581 – External Body Bracket with Holes for 16-Spring UB Box
• (1) 102259 – Aluminum Back Plate for Ext Bolt Flange Mount UB Box

Product Overview

• Genuine OEM Roll·Rite replacement part
• Passenger-side pivot assembly for 16-spring underbody tarp systems
• Supplied without pivot tube
• Complete pivot box with springs and mounting hardware
• Heavy-duty construction for dependable tarp system performance
